Phanteks Glacier EZ-Fit 360RAD-30, 30mm Copper Radiator, White

PH-GEF_RAD363_WT
Balance 0

Description

Glacier EZ-Fit 360RAD-30, 360mm-30mm thick Water Cooling Copper Radiator, Integrated 16mm EZ-Fit fitting, White

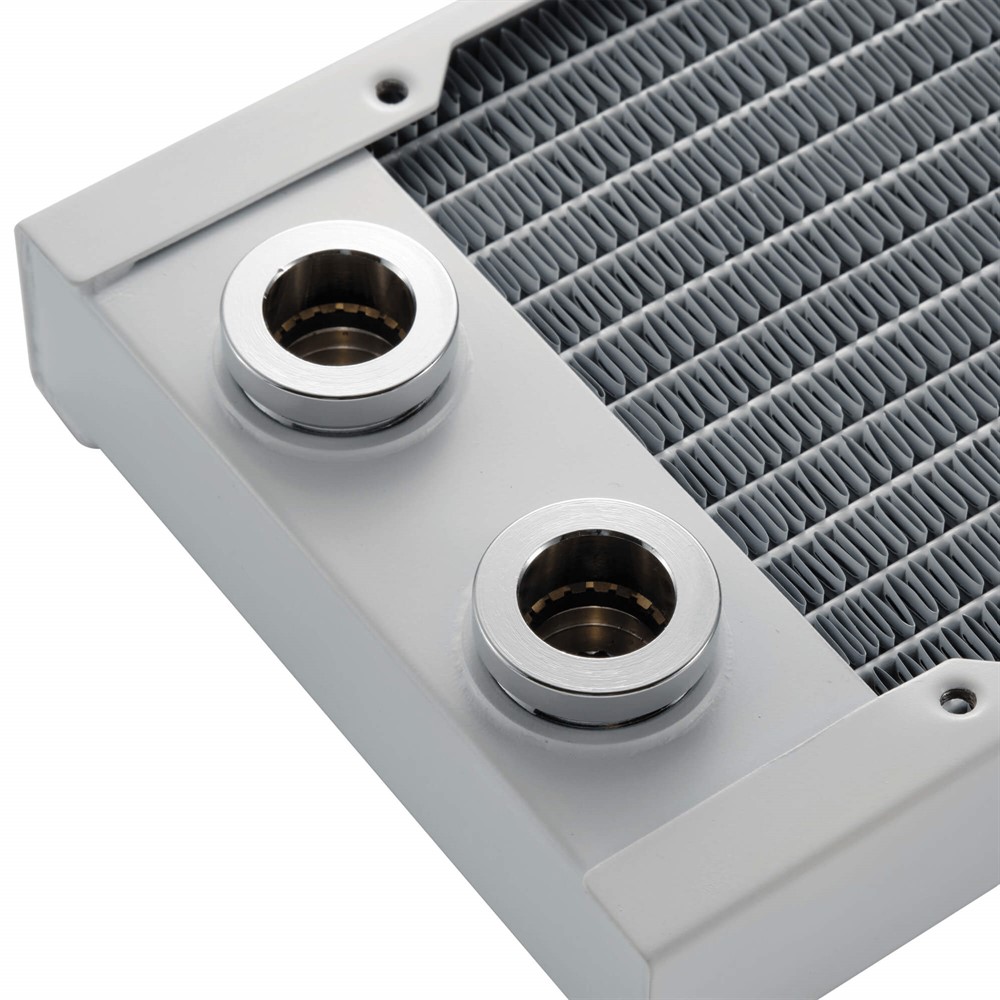

  • Integrated 16mm EZ-Fit Fittings: Designed for both hard and soft tubing, eliminating the need for additional fittings. Quick and easy setup, saving you time and hassle.
  • Premium Copper Construction: All-copper core featuring H90 copper tubing and pure copper fins ensures efficient heat dissipation for optimal cooling performance.
  • High-Density Fin Design: With 19 FPI (Fins Per Inch), this radiator maximizes surface area, delivering superior cooling even under heavy loads.
  • Durable & Rigid Frame: Built with a steel outer frame for long-lasting durability and structural integrity.
  • Versatile Fan Compatibility: Standard M4 threads allow for seamless installation of 25mm and 30mm thick fans. Screws are included, making it convenient to install your preferred fans.



Description:

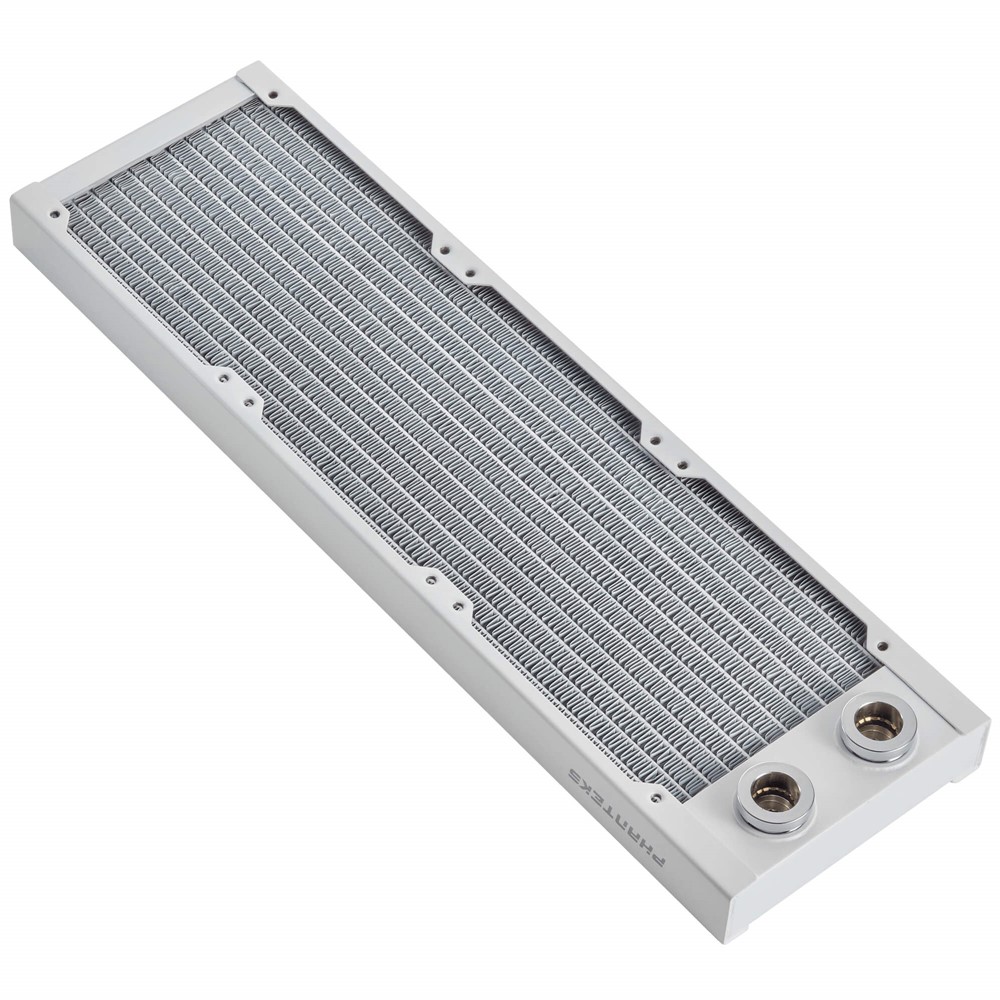

The Glacier EZ-Fit 360RAD-30 is a slim 360 radiator. Its 30mm thickness makes it highly versatile for a wide array of chassis. The integrated fittings simplify your build, reducing the need for extra components while enhancing compatibility with both hard and soft tubing systems.

The core of the radiator is made from H90 copper tubing and pure copper fins with a density of 19 FPI. The outer steel frame ensures a rigid construction that protects the copper core for long lasting performance.

Dimension (WxDxH)

410 x 123 x 30mm (16.14 x 4.84 x 1.18in)

Material(s)

Tubes: H90 Brass

Fins: T2 Copper

Water Tank: H62 Brass

Thread Insert: H59 Brass

Side Panel: 430 Stainless Steel

Fitting: Nickel Plated Brass

Fitting Insert: ABS

Color

White

Screw Thread Size

M24 x P1

FPI

19

Radiator Size

360mm

Supported tube size

Hard Tube: OD 16mm

Soft Tube: OD 16mm; ID 10mm

Tube Compatibility

Hard Tube: PETG, Acrylic tube

Soft Tube: PVC tube

Scope of delivery



360RAD-30 White

1x

Push-in Fitting (Pre-installed)

2x

Fitting Inserts (for soft tube)

3x

M4x5mm screws

12x

M4x30mm screws

12x

M4x36mm screws

12x

Manual

1x

More ...Close

Specifications

SKU
PH-GEF_RAD363_WT
EAN
886523702085
Box Length(cm)
46.5
Box Width(cm)
14
Box Height(cm)
4
Gross Weight(kg)
0.967
