Designed to offer the best of two worlds. A hybrid forged between silent and high-performance chassis. Find the optimal configuration in any situation by switching between quiet or performance mode.
Designed with effective sound proofing panel and Phanteks’ new high-airflow fabric, the Eclipse P600s offers the full potential of two opposites, minimum noise and maximum airflow.

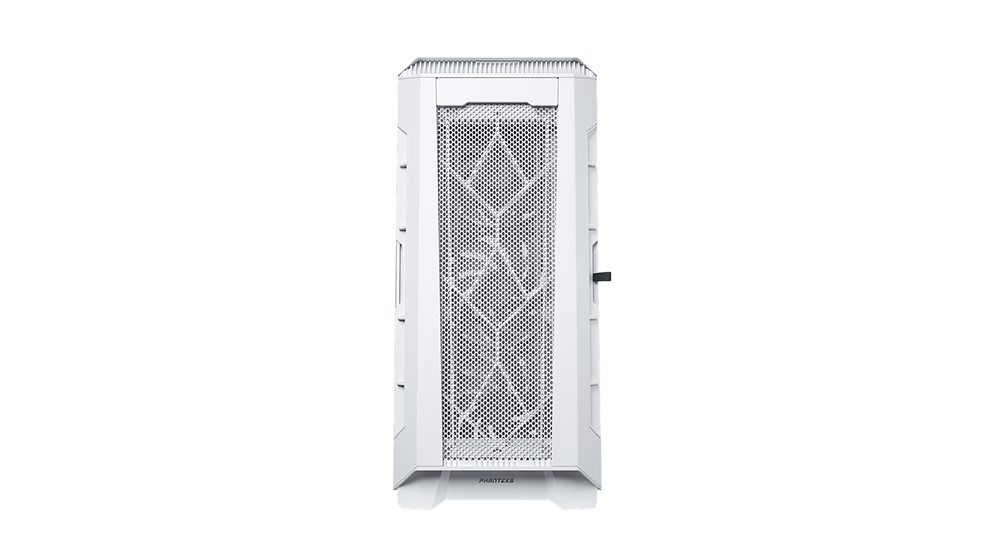

Based on the award winning Evolv X chassis interior, the Eclipse P600s comes with tons of features. Now also available in Matte White color with 3x140mm D-RGB fans included.
Case Dimension (WxHxD) |
240 x 520 x 510 mm / 9.45 x 20.5 x 20.1 in |
Form Factor |
Mid Tower |
Materials |
Sound Dampening Panels, Steel Chassis, Tempered Glass |
Motherboard Support |
E-ATX*, ATX, Micro-ATX, Mini ITX (E-ATX* - up to 280mm wide) |

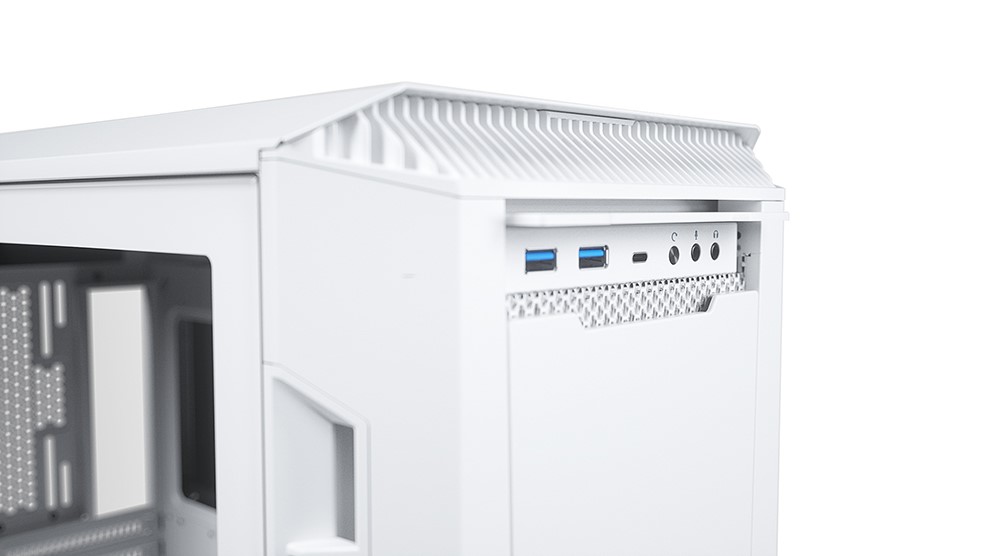

Front IO |
1x USB-C Gen 2
2x USB 3.0
Mic
Headphone
Power button
Reset button
|
Connectors |
Power Switch
Reset Switch
USB 3.0
USB 3.2 GEN 2 Type-E
HD-audio
|
Side Panels |

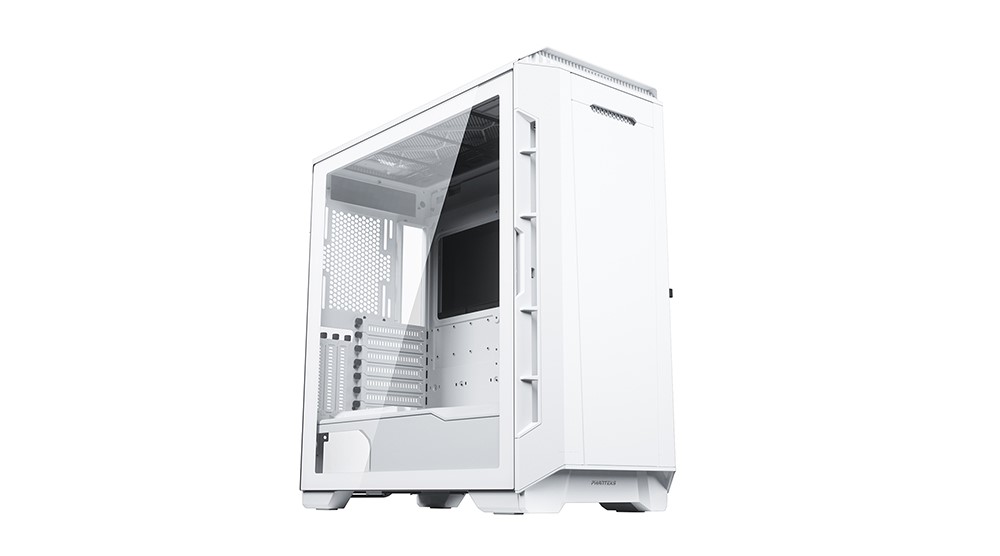

Hinged Tempered Glass |

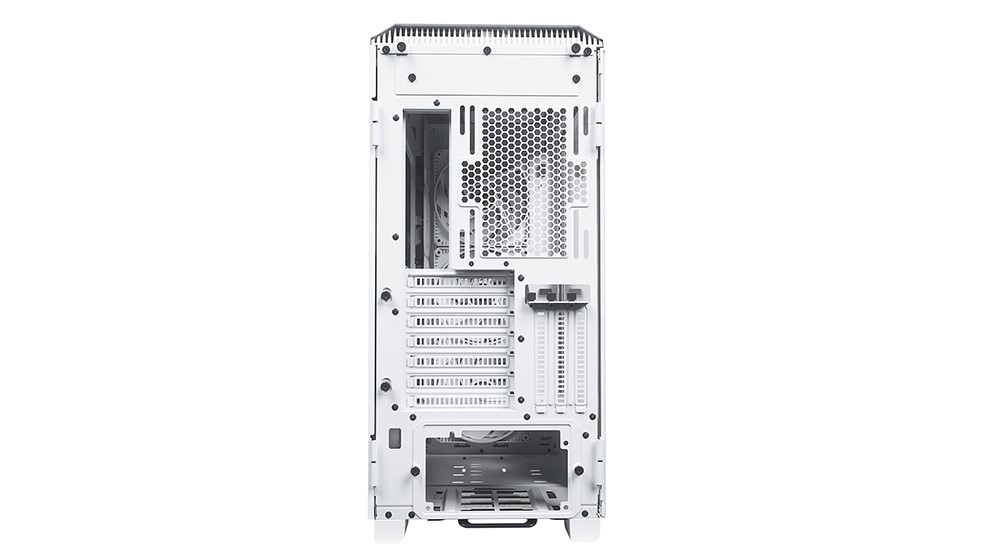

PCI Slots |
7 |
PCI Slots Vertical |
3 |

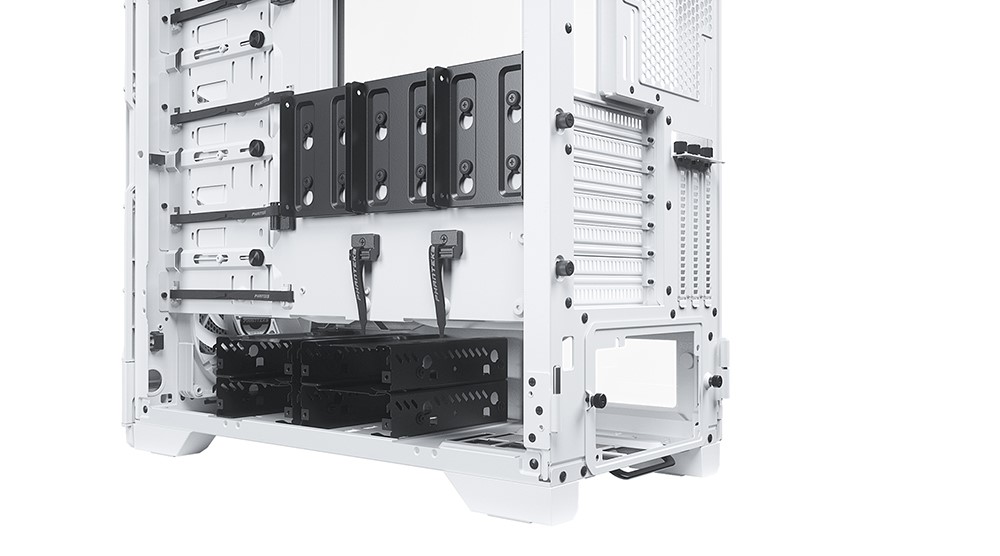

Internal 3.5”bay |
10 (4x included) |
Internal 2.5”bay |
3 (3x included) |

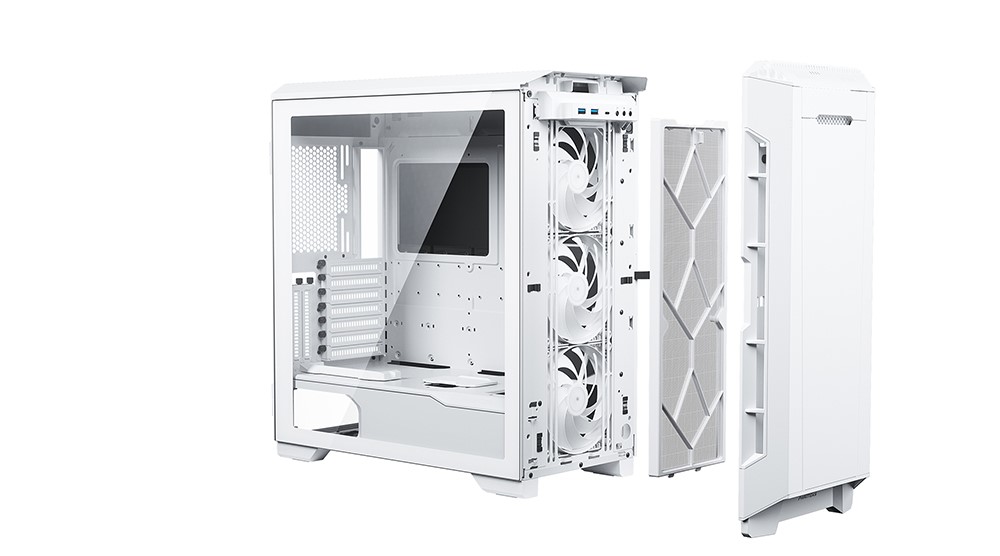

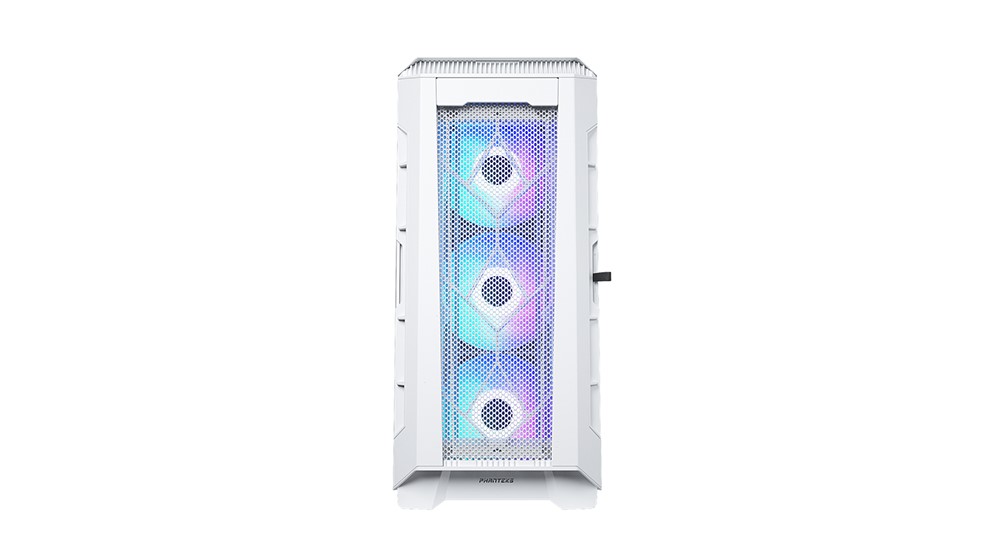

Front Fan |
3 x 120mm / 3 x 140mm (3x D-RGB installed) |
Top Fan |
3 x 120mm / 2 x 140mm |
Rear Fan |
1 x 120mm / 1 x 140mm |
Front Radiator |
up to 360 / 420 |
Rear Fan |
up to 360 / 280 |
Rear Fan |
up to 120 / 140 |
GPU Length Clearance |
435 mm / 17.2 in |
CPU Cooler Height |
190 mm (7.4 in) |
Front Radiator + Fan (thickness) |
95 mm (3.7 in) |
Top Radiator + Fan (thickness) |
65 mm (2.5 in) |
Motherboard |
Up to 280mm wide |
Package Dimension |
325 x 610 x 610 mm / 12.8 x 24 x 24 in |
Net Weight |
13.5 kg / 29.76 lbs |
Gross Weight |
15.5 kg / 34.17 lbs |
Scope of delivery |
3x 140mm D-RGB fan
1x Universal Fan Hub
4x 3.5” Stackable HDD bracket
3x 2.5’’ SSD bracket
1x Vertical GPU mount
1x GPU Anti-Sag bracket
1x Airflow cover
1x Toolbox
|
