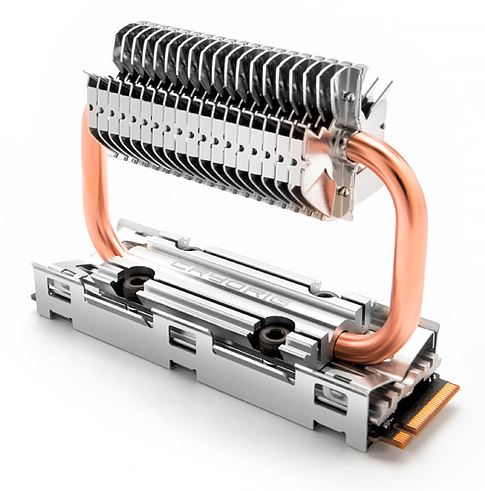

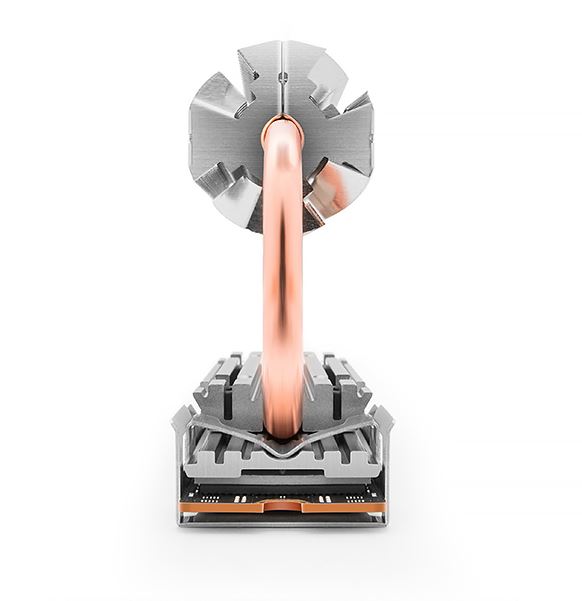

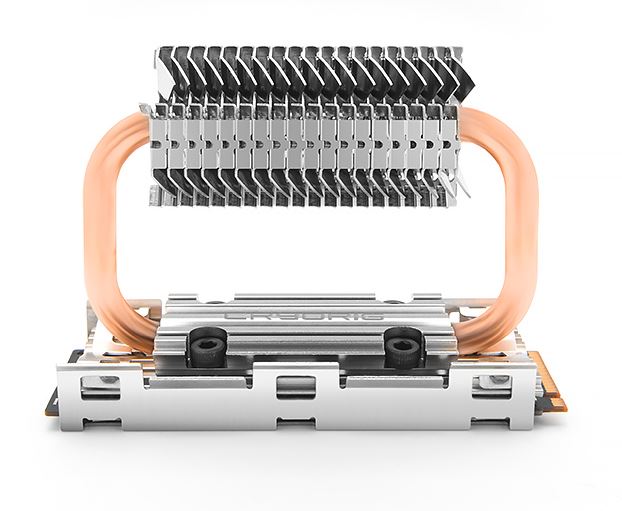

The Frostbit is the first aftermarket M.2 cooler with heatpipe technology. It’s Dual stacked heatpipes work cooperatively to form a massive heat dissipation surface. First the Ultra Thin Heatpipe spreads heat from components into the Primary Heat Spreader. The Secondary Heatpipe is then attached to draw heat futher into a large volume Heatsink.
Frostbit could be easily installed, users could upgrade their own M.2 heating system within few minutes.
Special radiating fins with 2 full-copper heat pipes, reaching the greatest heights in the M.2 cooling effect.

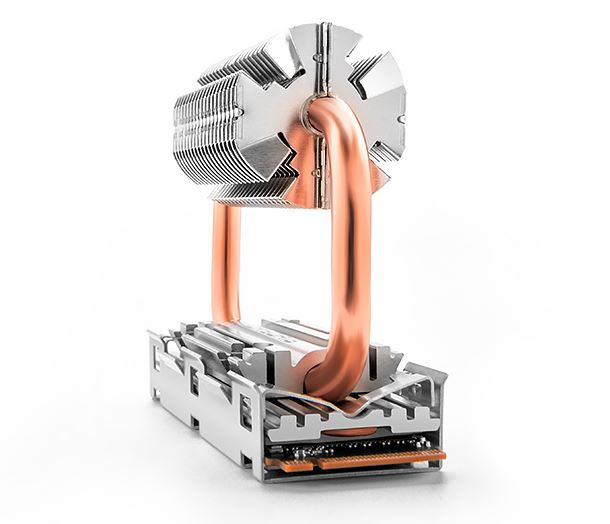

The Frostbit’s Heatsink can be adjusted to fit different PC setups. The Secondary Heatpipe’s angle can be manually tilted to either side to avoid the GPU or a large CPU cooler.
Dimension |
L72 mm x W26.3 mm x H14.2 mm |
Weight |
56 g |
Heat Pipes |
6mm heatpipe x 1+1 units |
Front Fin |
T = 0.4 mm ; Gap = 2.4 mm |
Front Fin Pcs |
19 x 2 = 38 pcs |
TDP |
25W |
