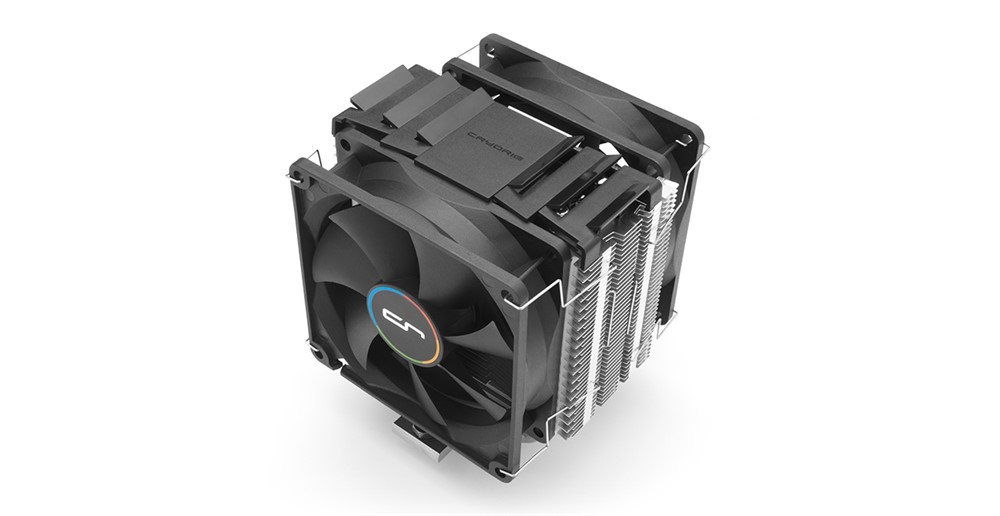

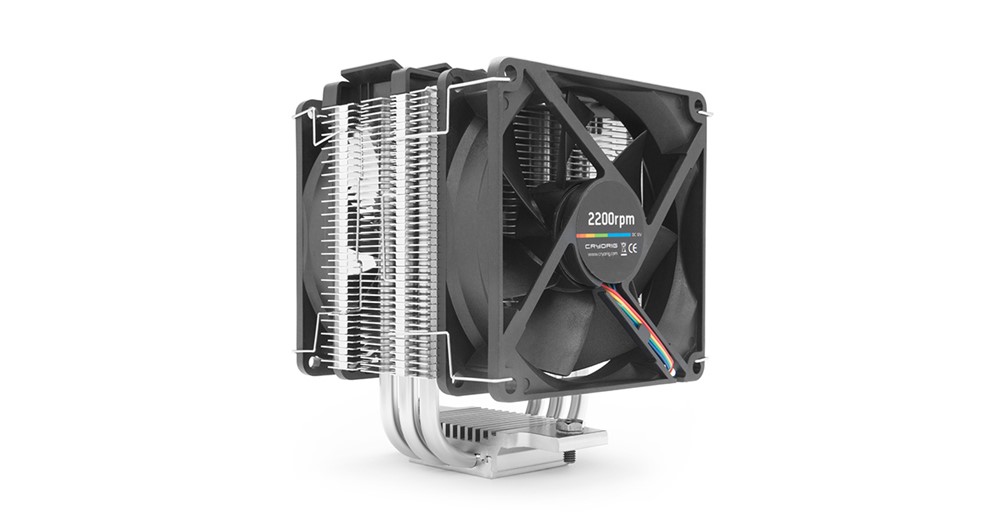

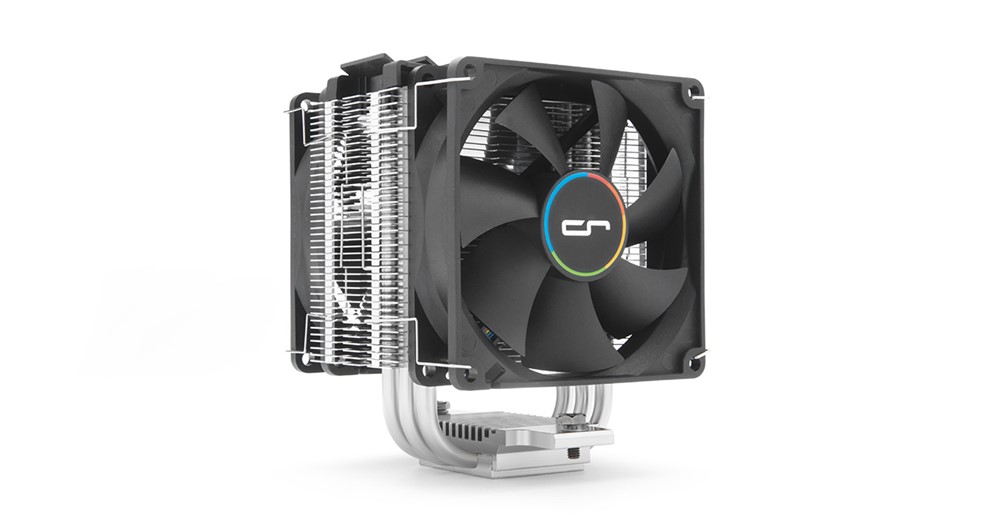

H7 PLUS. The Dual Fan Enhanced Performance Tower.
Direct Air Tunnel Effect, Aligned System Airflow
By adding one additional fan the full fan system aligns with your system fan, to concentrate and expel exhaust heat.
This increases the overall efficiency of the whole system airflow.
| Heatsink Specification |
| Dimension ( with fan ) |
L126 mm x W123 mm x H145 mm |
| Weight ( with fan ) |
845 g |
| Weight ( without fan ) |
577 g |
| Heat pipes |
6mm heatpipe x 3 units |
| Fin |
T = 0.4 mm ; Gap = 2.2 mm |
| Fin Pcs |
40 pcs |
| Copper Base |
C1100 Pure copper nickel plated |
| RAM Height Limit |
Limitless |
| TDP |
150 W |
| |
|
| Fan Specification |
| Model |
QF120 Black Balance |
| Dimension |
L120 mm x W120 mm x H25.4 mm |
| Weight |
134 g |
| Rated Speed |
300 ~ 1600 RPM ±10 % |
| Noise Level |
25 dBA |
| Air Flow |
59 CFM |
| Air Pressure |
1.65 mmH2O |
| Ampere |
0.16 A |
| |
|
| Motherboard Compatibility |
|
| 1150, 1151, 1155, 1156 |
|
| FM1, FM2/+, AM2/+, AM3/+, AM4 |
|
| |
|
| What's In The Box |
| H7 Plus x 1 |
|
| X-Bar™ Backplate x 1 |
|
| Screw Pillars x 4 |
|
| Screw Sleeves x 4 |
|
| PWM Y-Cable x 1 |
|
| CRYO-Paste CP7 x 1 |
|
| Installation Guide x 1 |
|
| Product Registration Card x 1 |
|
