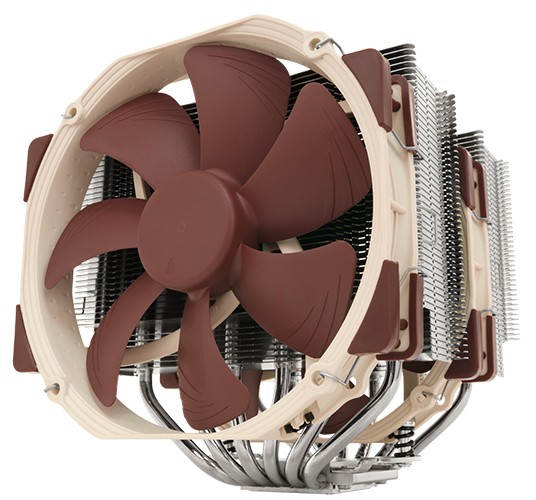

Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua’s flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14’s award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.
Cooler Specification
Socket compatibility - Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 with NM-AM4
Height (without fan) - 160 mm
Width (without fan) - 150 mm
Depth (without fan) - 135 mm
Height (with fan) - 165 mm
Width (with fan) - 150 mm
Depth (with fan) - 161 mm
Weight (without fan) - 980 g
Weight (with fan/s) - 1320 g
Material - Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility - 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery:
- 2x NF-A15 PWM premium fan
- 2x Low-Noise Adaptor (L.N.A.)
- Y-Cable
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
- Noctua Metal Case-Badge
- Warranty - 6 years
FAN Specification
Model - 2x Noctua NF-A15 PWM
Bearing - SS02
Max. Rotational Speed (+/- 10%) - 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) - 1200 RPM
Min. Rotational Speed (PWM, +/-20%) - 300 RPM
Max. Airflow - 140,2 m³/h
Max. Airflow with L.N.A. - 115,5 m³/h
Max. Acoustical Noise - 24,6 dB(A)
Max. Acoustical Noise with L.N.A. - 19,2 dB(A)
Voltage Range - 12 V
MTTF - > 150.000 h
