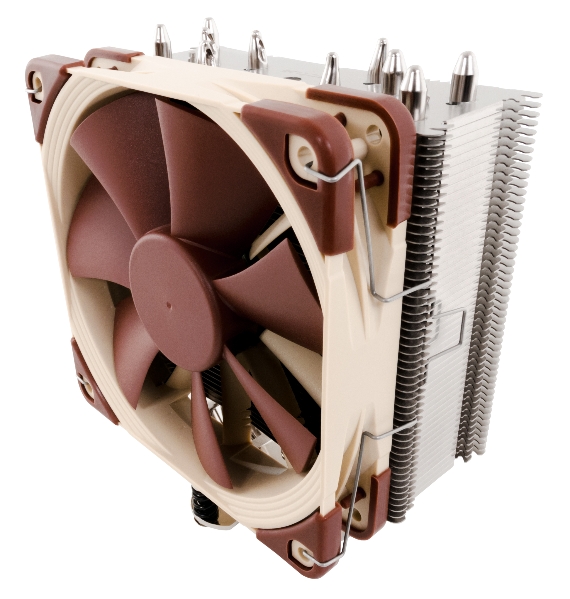

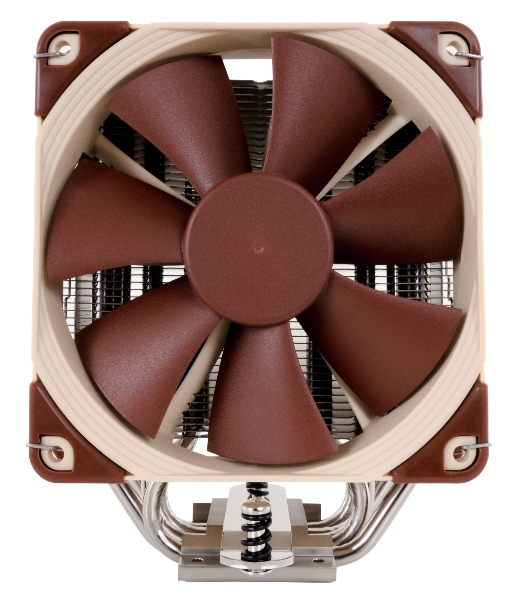

Continuing the legacy of Noctua’s classic NH-U-series, which has received more than 500 awards and recommendations from international hardware websites and magazines, the NH-U12S has become a benchmark for slim, highly compatible 120mm single tower coolers. The SE-AM4 version is a dedicated special edition for AMD’s AM4 (Ryzen) platform, featuring the latest SecuFirm2™ mounting system for AM4. Topped off with the renowned quiet NF-F12 PWM 120mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12S SE-AM4 forms a complete premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for AM4 systems.
Caution
Please note that as a dedicated special edition for AM4, the NH-U12S SE-AM4 comes with AM4 mounting hardware only.
Cooler Specification
Socket compatibility - AMD AM4
Height (without fan) - 158 mm
Width (without fan) - 125 mm
Depth (without fan) - 45 mm
Height (with fan) - 158 mm
Width (with fan) - 125 mm
Depth (with fan) - 71 mm
Weight (without fan) - 580 g
Weight (with fan/s) - 755 g
Material - Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility - 120x120x25

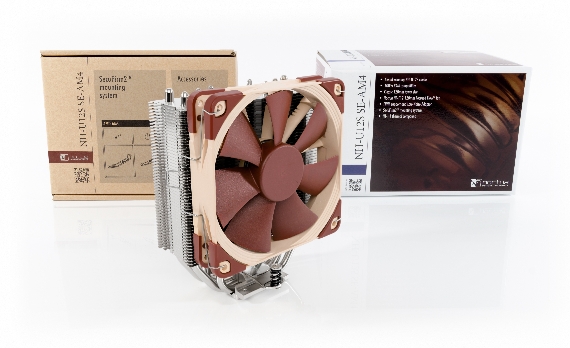

Scope of delivery:
- NF-F12 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ AM4 mounting-kit
- Anti-vibration pads and fan-clips for second NF-F12
- Noctua Metal Case-Badge
Warranty - 6 years
FAN Specification
Model - Noctua NF-F12 PWM
Bearing - SS02
Max. Rotational Speed (+/- 10%) - 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) - 1200 RPM
Min. Rotational Speed (PWM, +/-20%) - 300 RPM
Max. Airflow - 93,4 m³/h
Max. Airflow with L.N.A. - 74,3 m³/h
Max. Acoustical Noise - 22,4 dB(A)
Max. Acoustical Noise with L.N.A. - 18,6 dB(A)
Input Power - 0,6 W
Voltage Range - 12 V
MTTF - > 150.000 h
