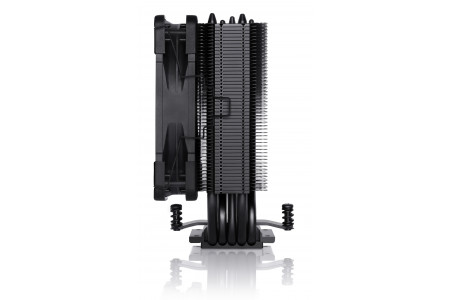

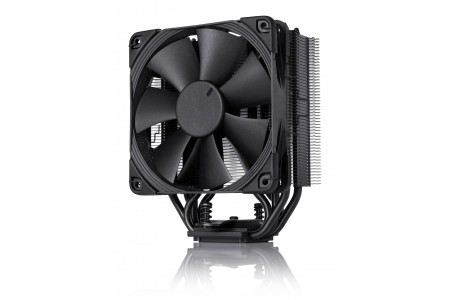

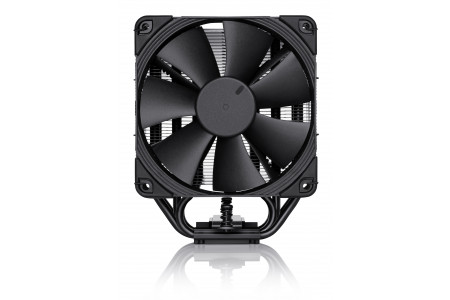

The NH-U12S chromax.black is an all-black version of Noctua’s award-winning NH-U12S premium-quality quiet CPU cooler. Thanks to the same proven slim-tower heatsink design and NF-F12 PWM fan, it stays true to the NH-U12S’s successful formula of fusing excellent cooling performance with superb quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look.
Cooler Specification
Socket compatibility: Intel LGA1700, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan): 158 mm
Width (without fan): 125 mm
Depth (without fan): 45 mm
Weight (without fan): 580 g
Height (with fan): 158 mm
Width (with fan): 125 mm
Depth (with fan): 71 mm
Weight (with fan): 755 g
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP: see CPU compatibility list https://noctua.at/en/nh-u12s/cpucomp
Fan compatibility: 120x120x25

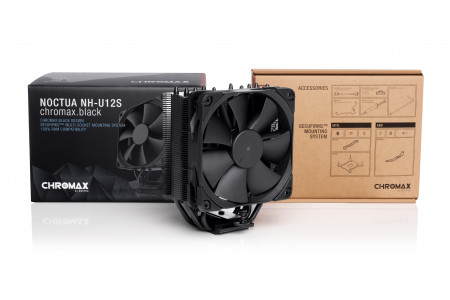

Scope of delivery
- Black NH-U12S heatsink
- NF-F12 PWM chromax.black premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- Black SecuFirm2™ Mounting Kit
- Black anti-vibration pads and fan-clips for second NF-F12
- Noctua Metal Case-Badge
FAN Specification
Model: Noctua NF-F12 PWM chromax.black
Bearing: SSO2
Max. rotational speed (+/- 10%): 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%): 1200 RPM
Min. rotational speed (PWM, +/-20%): 300 RPM
Max. airflow: 93,4 m³/h
Max. airflow with L.N.A.: 74,3 m³/h
Max. acoustical noise: 22,4 dB(A)
Max. acoustical noise with L.N.A.: 18,6 dB(A)
Voltage range: 12 V
MTTF: > 150.000 h
