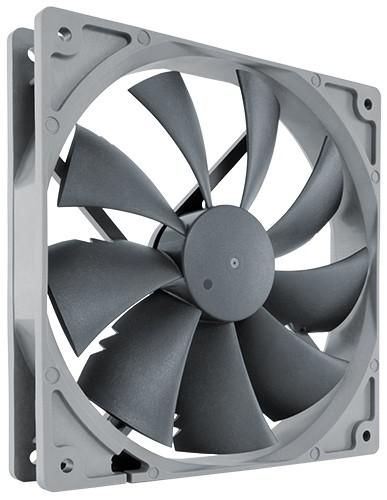

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components.
The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1200rpm PWM version features Noctua’s proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.
Specifications
Size - 140x140x25 mm
Mounting hole spacing - 124,5x124,5 mm
Connector - 4-pin PWM
Bearing - SSO-Bearing
Rotational Speed (+/- 10%) - 1200 RPM
Min. Rotational Speed (PWM, +/-20%) - 350 RPM
Airflow - 110,3 m³/h
Acoustical Noise - 19,6 dB(A)
Static Pressure - 1,29 mm H2O
Max. Input Power - 0,96 W
Max. Input Current - 0,08 A
Voltage - 12 V
MTTF - > 150.000 h
Scope of delivery:
- Fan
- 4 Fan Screws
Warranty - 6 years
