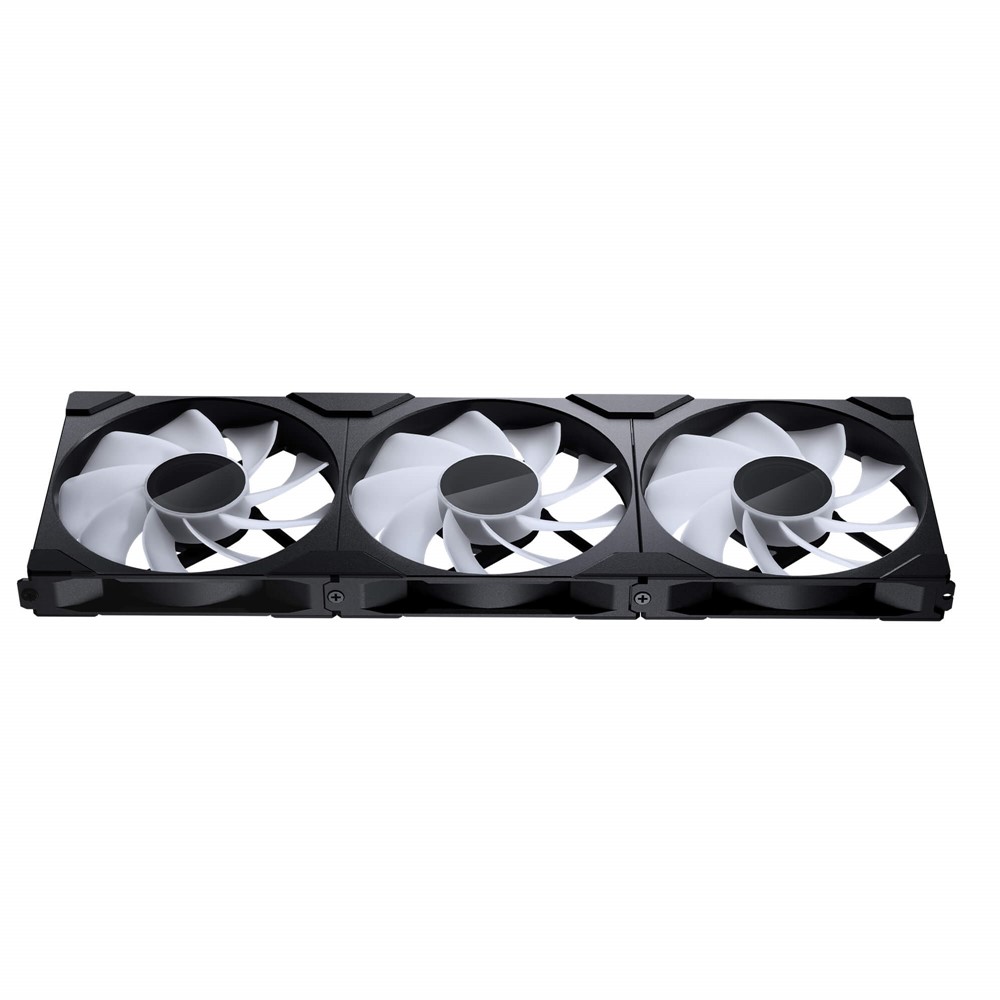

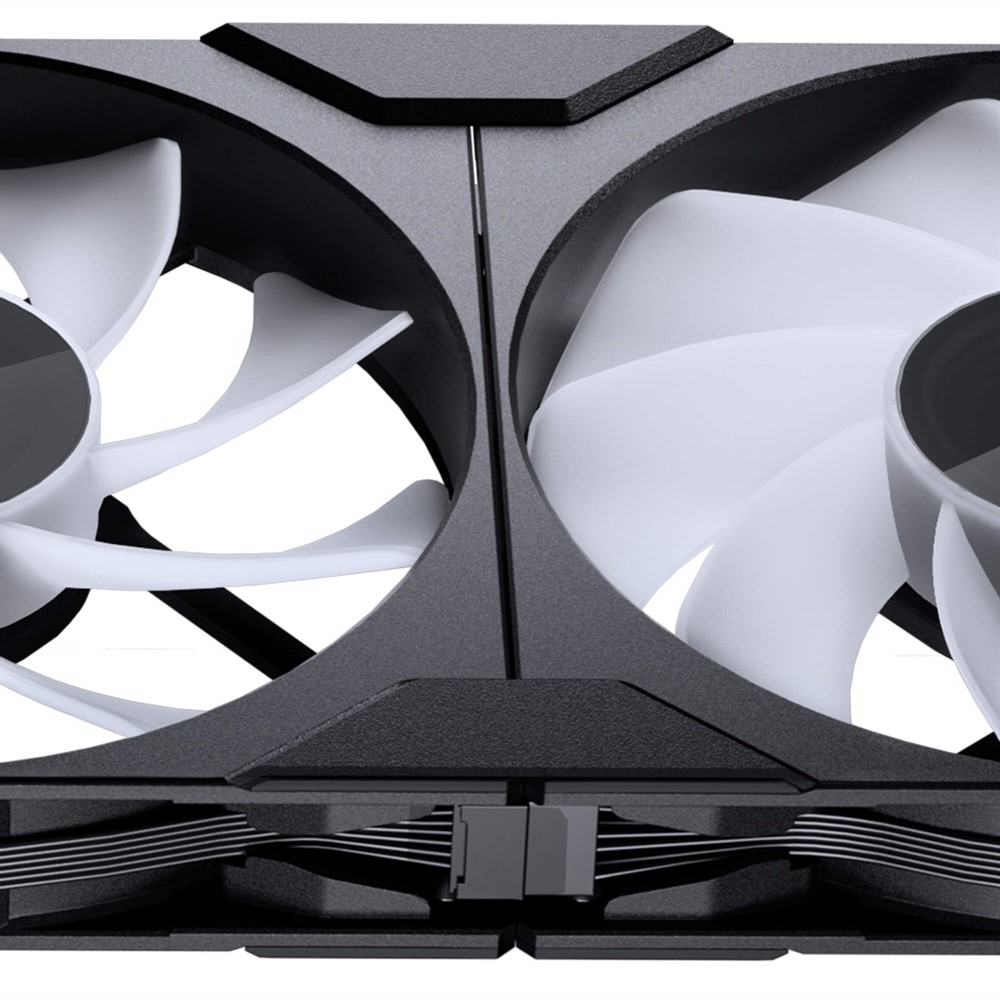

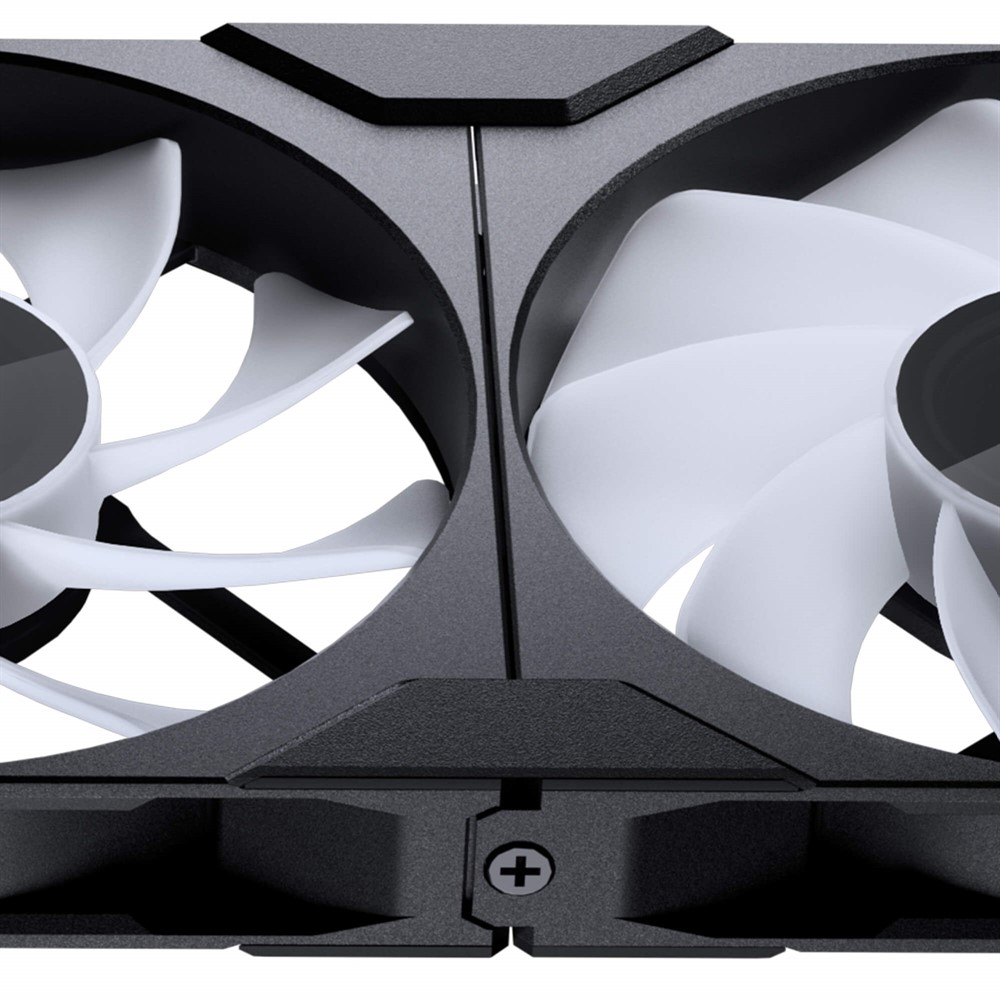

The Phanteks M25 Gen2 Reversed Triple Pack comes packed with features previously only seen in the highest end fans. It’s Daisy-chain Unified Fan Frame easily interlocks with the next fan to link multiple fans together into one. The Linq6 cable combines all fan and lighting signals into one connector linking multiple fan and lighting products with a single cable.

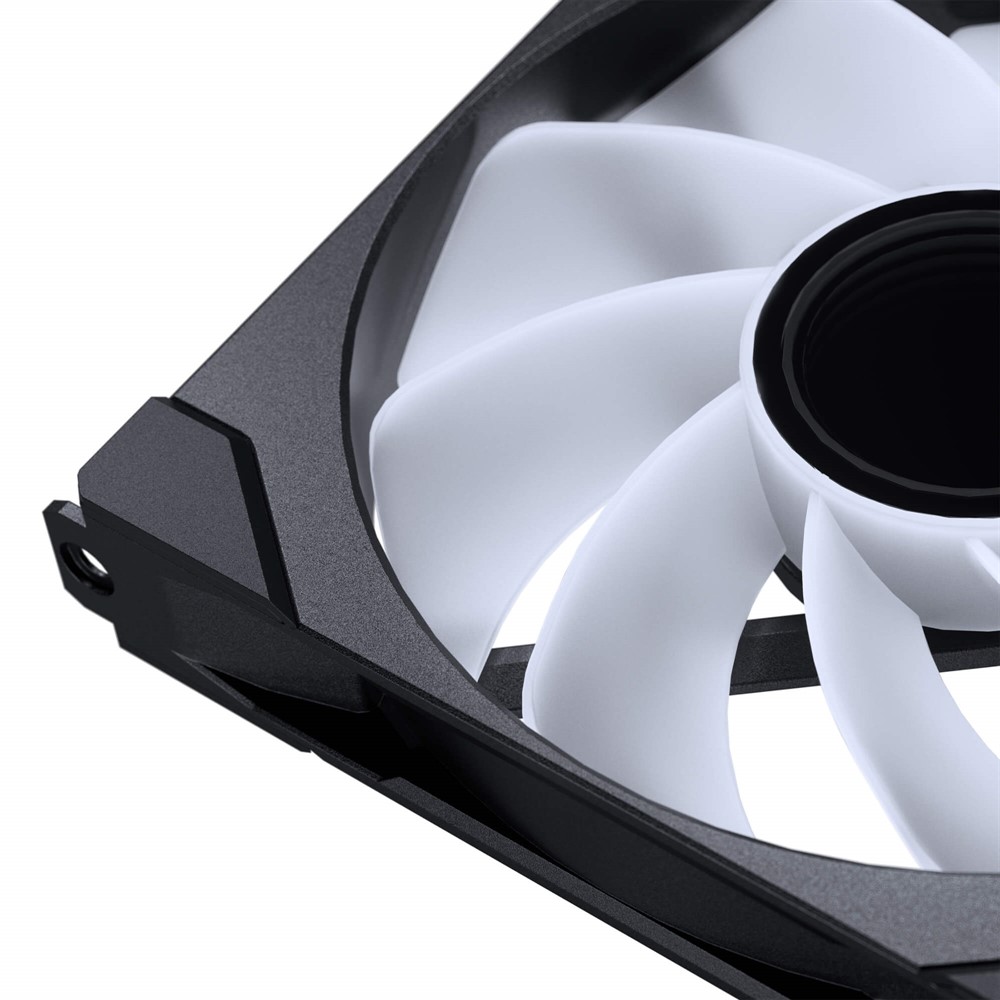

With its blades designed specifically for high airflow performance on radiators and heat sinks, the M25 Gen2 excels where it matters. Delivering low temperatures with a clean look to elevate your system.
|
Fan Specifications
|
|
|
|
|
Fan Dimension
|
140 x 140 x 25 mm (LxWxH)
|
|
Wind Direction
|
Reversed
|
|
Color
|
White Matte blade / Black Fan Frame
|
|
Frame Material
|
PBT (Polybutylene Terephthalate)
|
|
Blade Material
|
PC (Polycarbonate)
|
|
Fan + DRGB Connector
|
Linq6 (HY-2.0-6P)
|
|
Fan + DRGB Cable
|
140mm Daisy-chain
|
|
Bearing Type
|
Hydraulic Bearing
|
|
|
|
|
Max. Airflow
|
100.07 CFM
|
|
Max. Static Pressure
|
2.04 mmH2O
|
|
Max. Sound Level
|
40.95 dBA
|
|
|
|
|
Motor Type
|
PWM, 2-Fase/4-poles
|
|
Speed Range
|
350-1800 ± 10% RPM
|
|
Rated Voltage
|
DC 12V, 6-13.2V
|
|
Rated Current
|
0.28A (Max: 0.30A)
|
|
Rated Power
|
3.36W
|
|
Motor Safety Protection
|
Polarity Protection
|
|
MTTF
|
40000hrs at 50℃
|
|
|
|
|
DRGB LED Quantity
|
12 pcs
|
|
DRGB LED Voltage
|
DC 5V
|
|
DRGB LED Max Current
|
0.43A
|
|
|
|
Scope of delivery
|
|
|
M25-140 Gen2 Reversed Fan
|
3x
|
|
Fan Screws
|
14x
|
|
500mm Linq6 Extension Cable
|
2x
|
|
500mm Linq6 M/B Adapter
|
1x
|
|
Screw Cover Corner
|
4x (2xL, 2xR)
|
|
Screw Cover Bridge
|
4x
|
|
Installation Guide
|
1x
|
