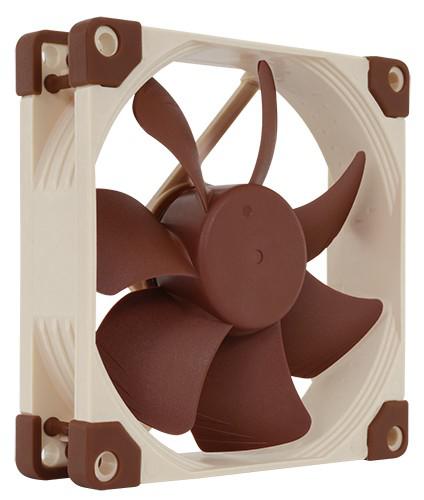

The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2000 to 1550rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.
Specifications
Size - 92x92x25 mm
Mounting hole spacing - 82,5x82,5 mm
Connector - 4-pin PWM
Bearing - SSO2
Blade Geometry - A-Series with Flow Acceleration Channels
Frame Technology - AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%) - 2000 RPM
Rotational Speed with L.N.A. (+/- 10%) - 1550 RPM
Min. Rotational Speed (PWM, +/-20%) - 400 RPM
Airflow - 78,9 m³/h
Airflow with L.N.A. - 62,6 m³/h
Acoustical Noise - 22,8 dB(A)
Acoustical Noise with L.N.A. - 16,3 dB(A)
Static Pressure - 2,28 mm H2O
Static Pressure with L.N.A. - 1,53 mm H2O
Max. Input Power - 1,2 W
Max. Input Current - 0,1 A
Voltage - 12 V
MTTF - > 150.000 h

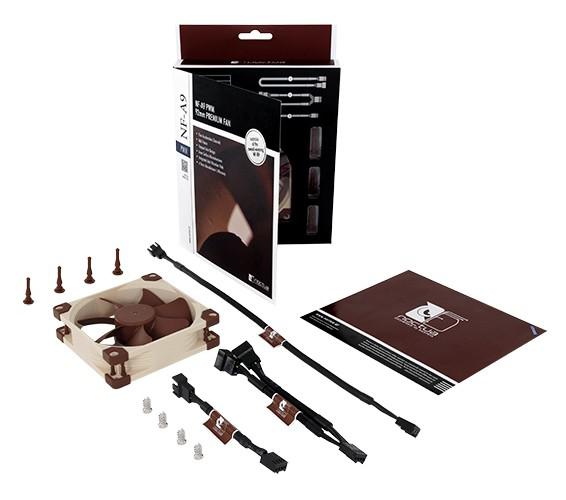

Scope of delivery:
- Low-Noise Adaptor (L.N.A.)
- 4-Pin Y-Cable
- 30cm Extension Cable
- 4 Vibration-Compensators
- 4 Fan Screws
Warranty - 6 years
