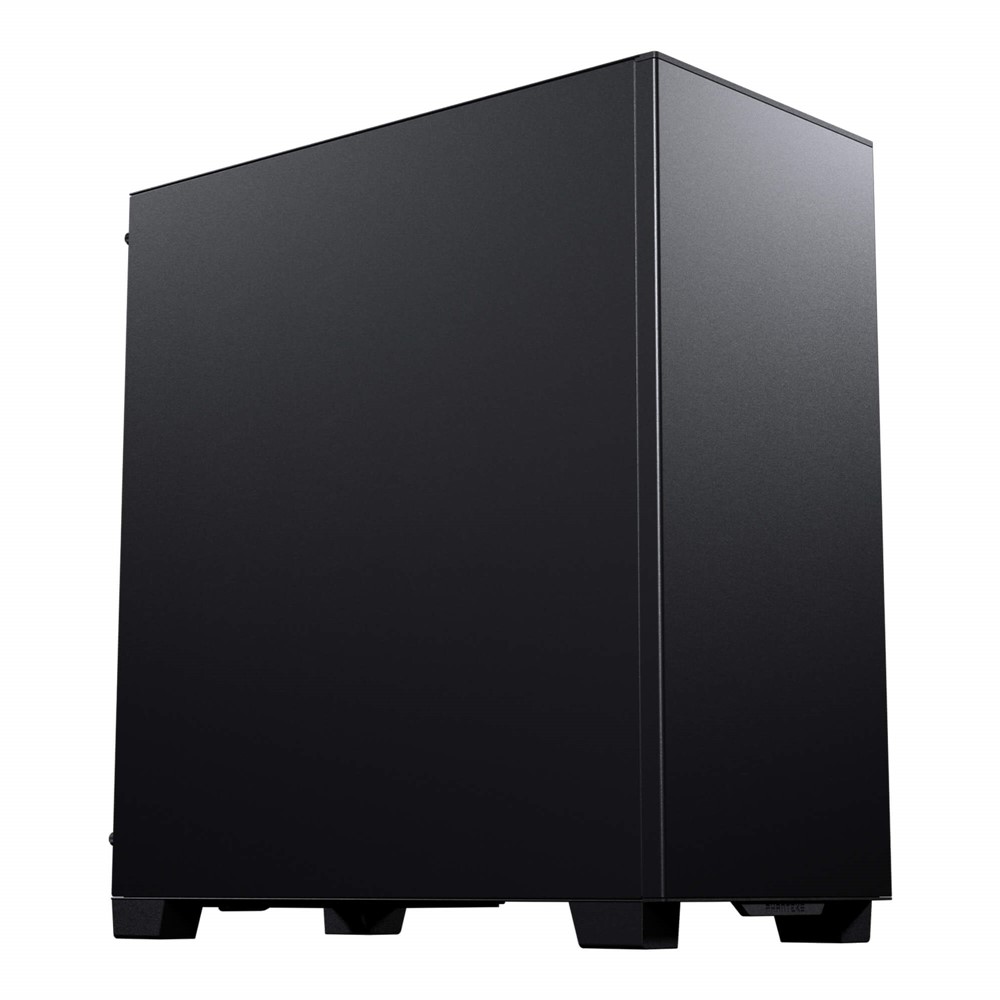

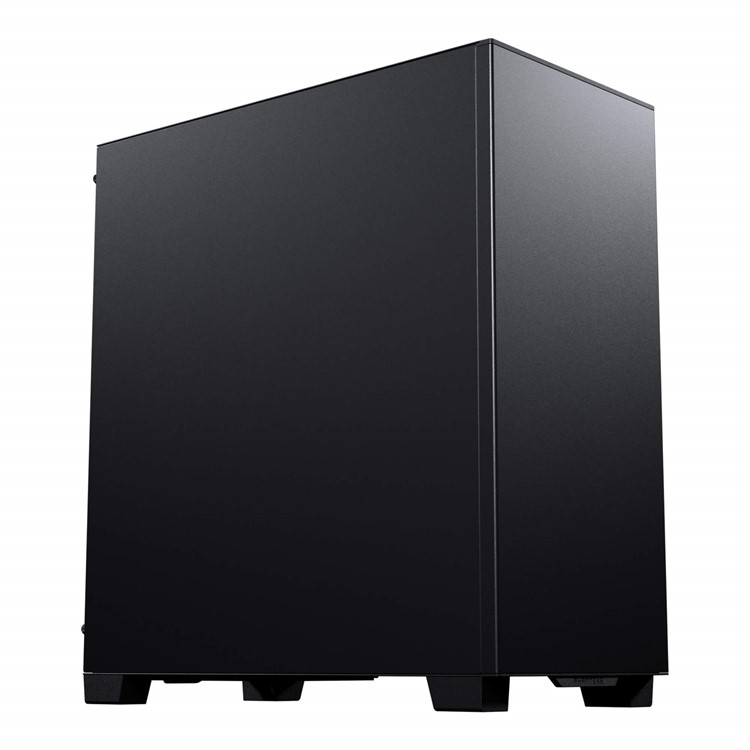

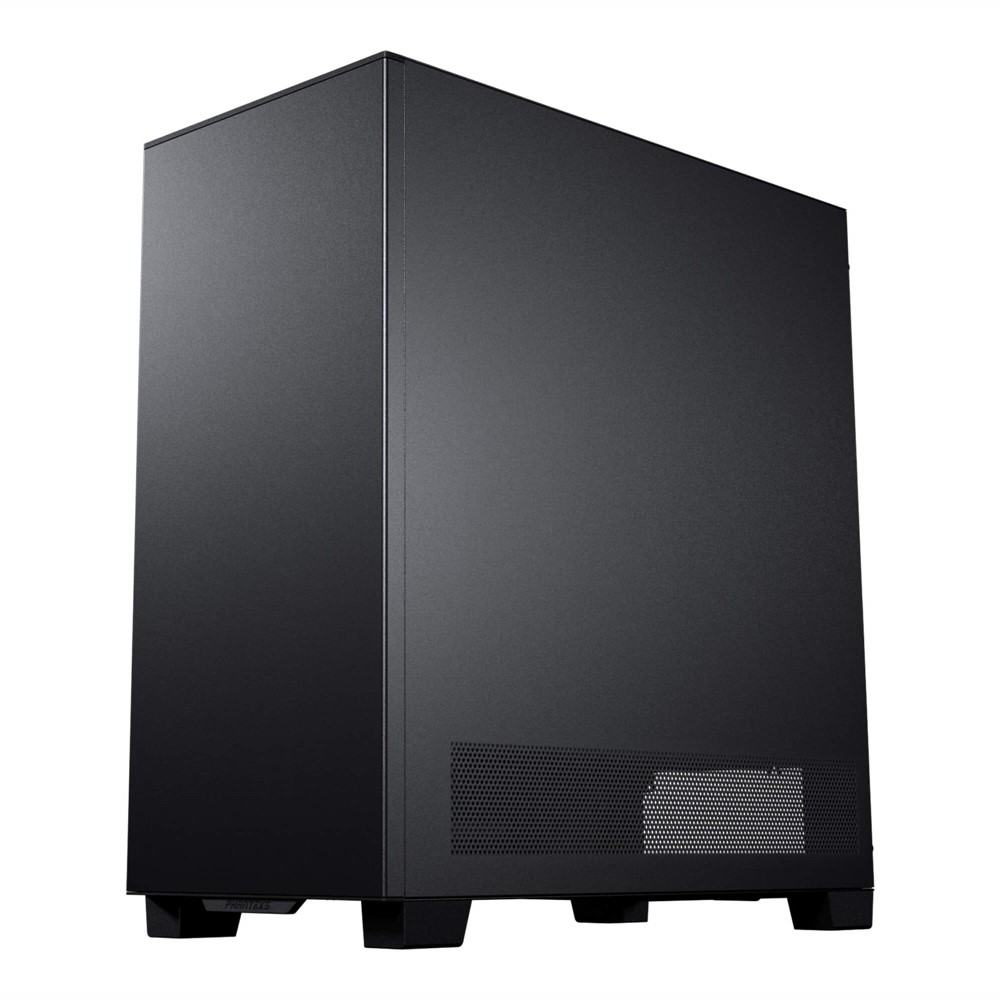

The XT-series chassis are crafted to accommodate the demands of new hardware releases, offering generous internal space and advanced cooling capabilities. This model combines exceptional value with features designed for silent performance. It comfortably fits even the largest graphics cards, with ample room for efficient cable management. The case's optimized cooling system supports up to 7x fan locations, including options for 140mm fans and dedicated radiator space at the top, ensuring quiet and efficient airflow.

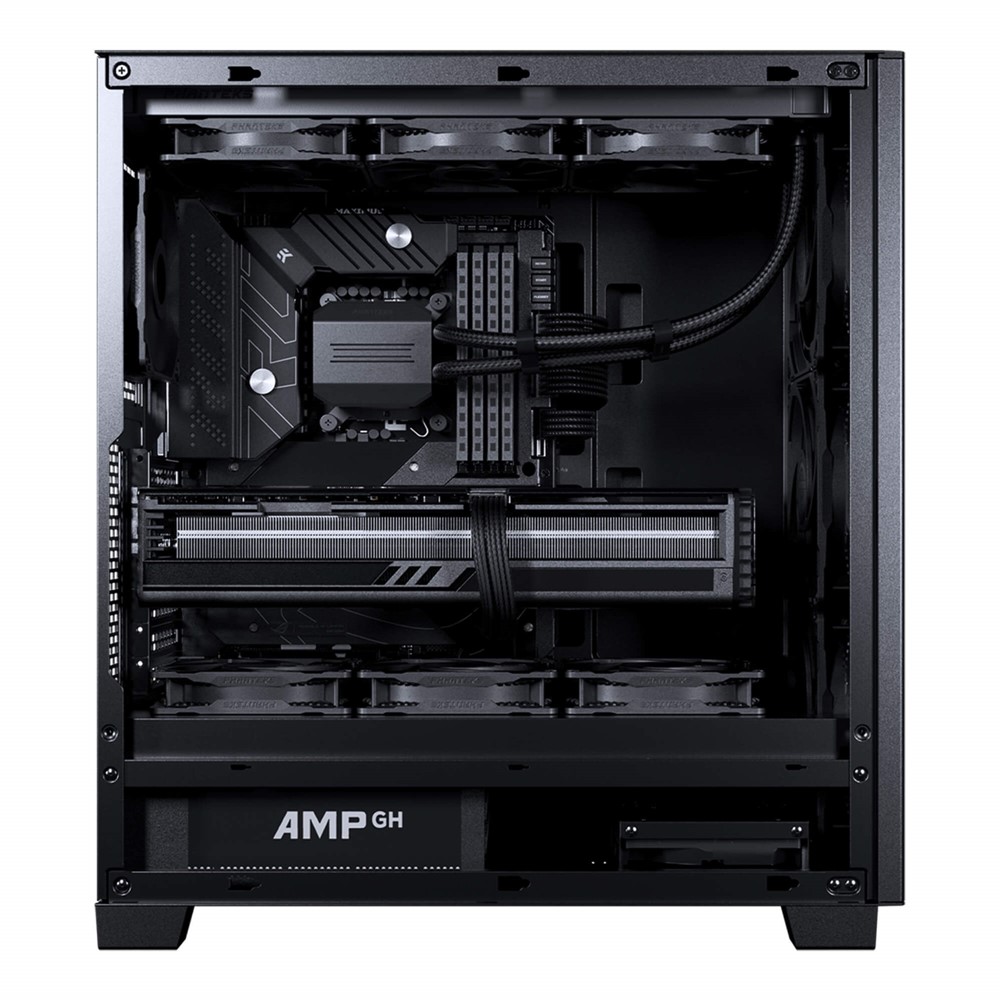

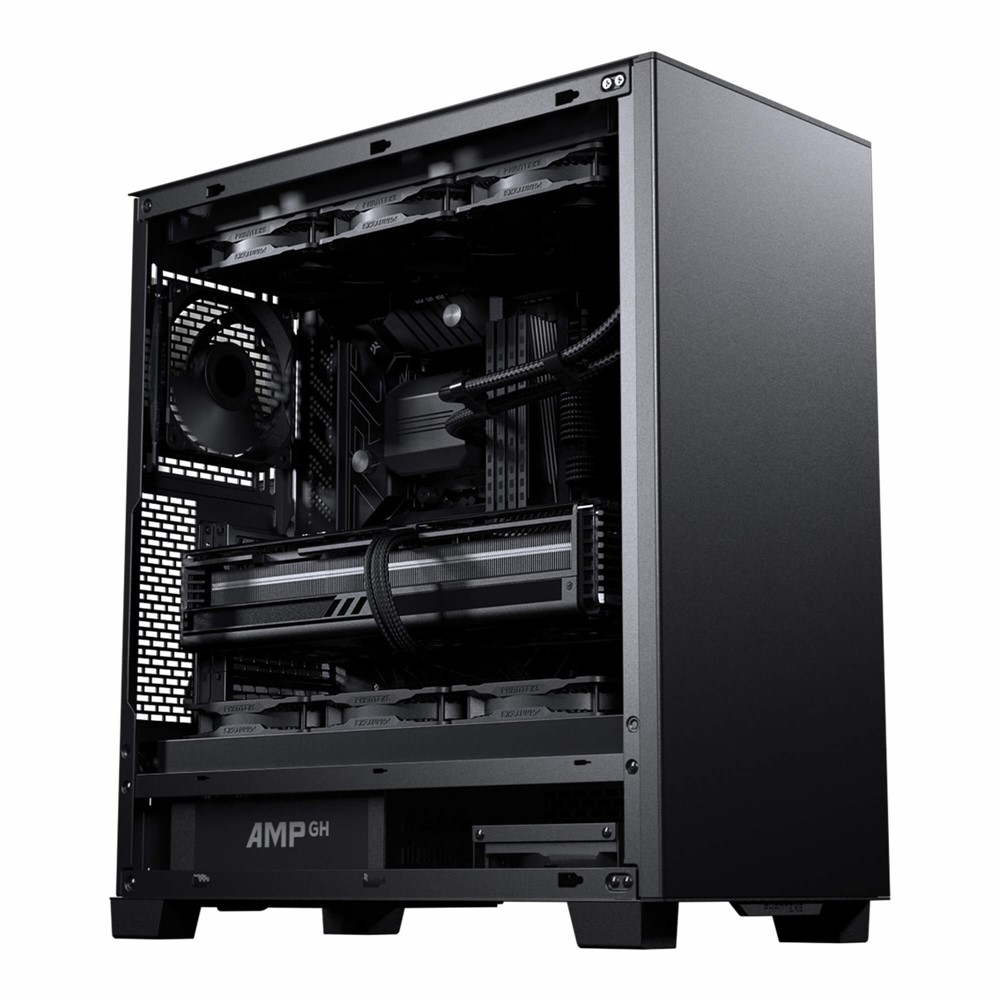

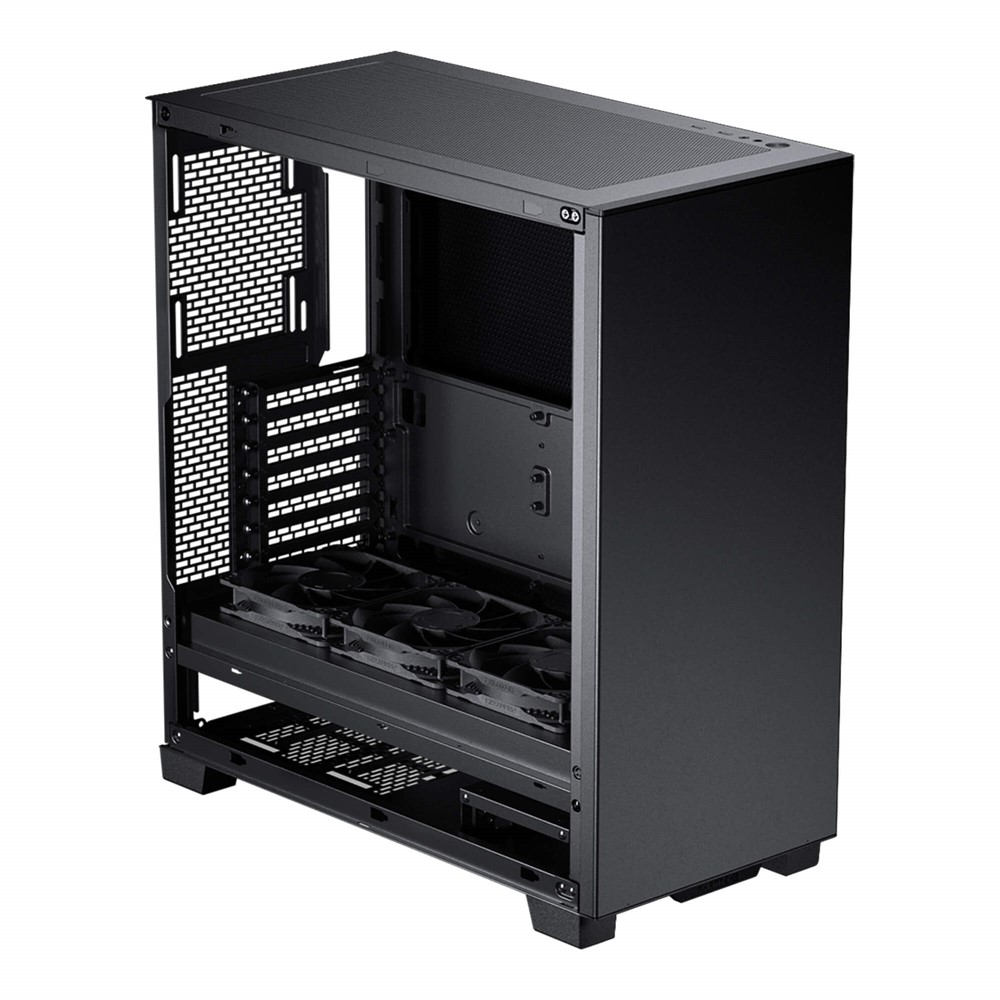

The XT-Series also supports the latest mainboards with hidden rear connectors, enabling a clean and cable-free setup. Furthermore, the mid-plate includes 3x 120mm fan mounts, providing direct cooling for the graphics card while maintaining a low noise profile.

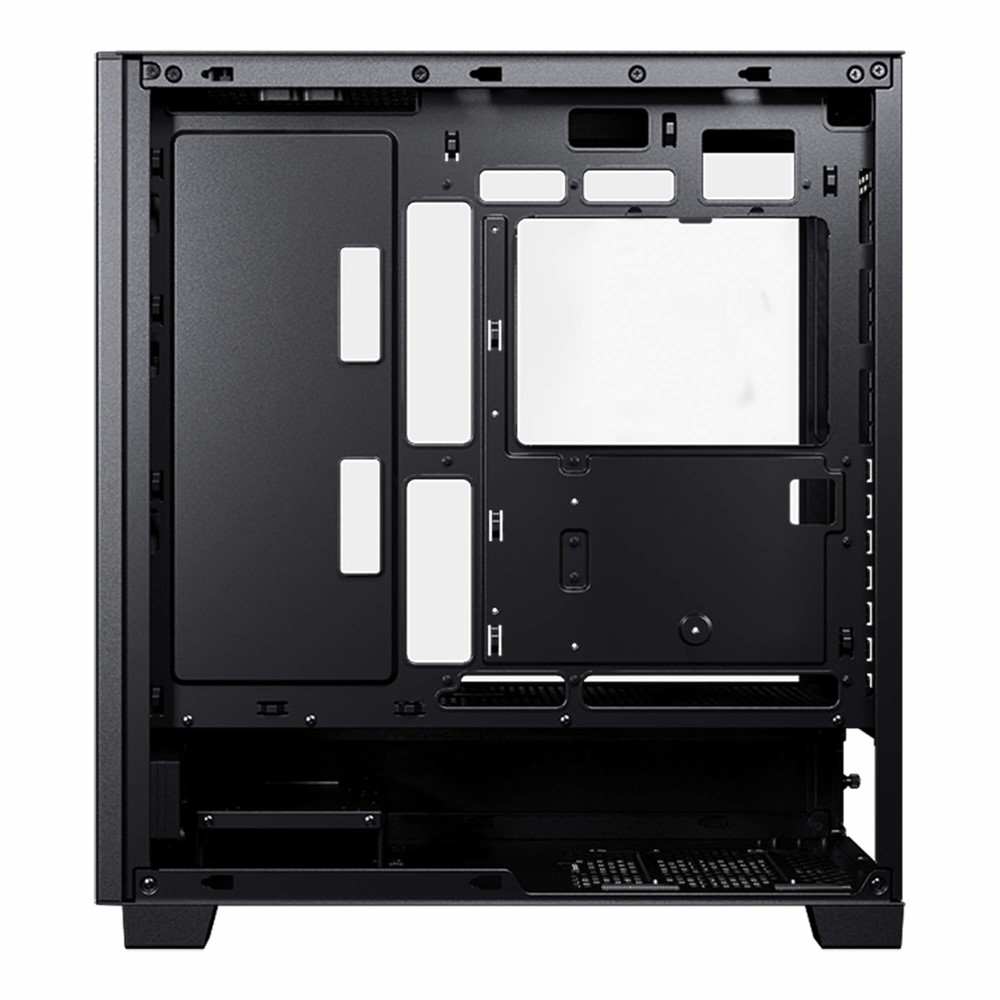

- Support for the latest rear-side connector mainboards
- Includes 3x M25-120 black fans included.
- Support for up to 7x 120mm fan locations.
- Dedicated 360 radiator support in the top without restrictions
- Support for the largest graphics cards without compromise

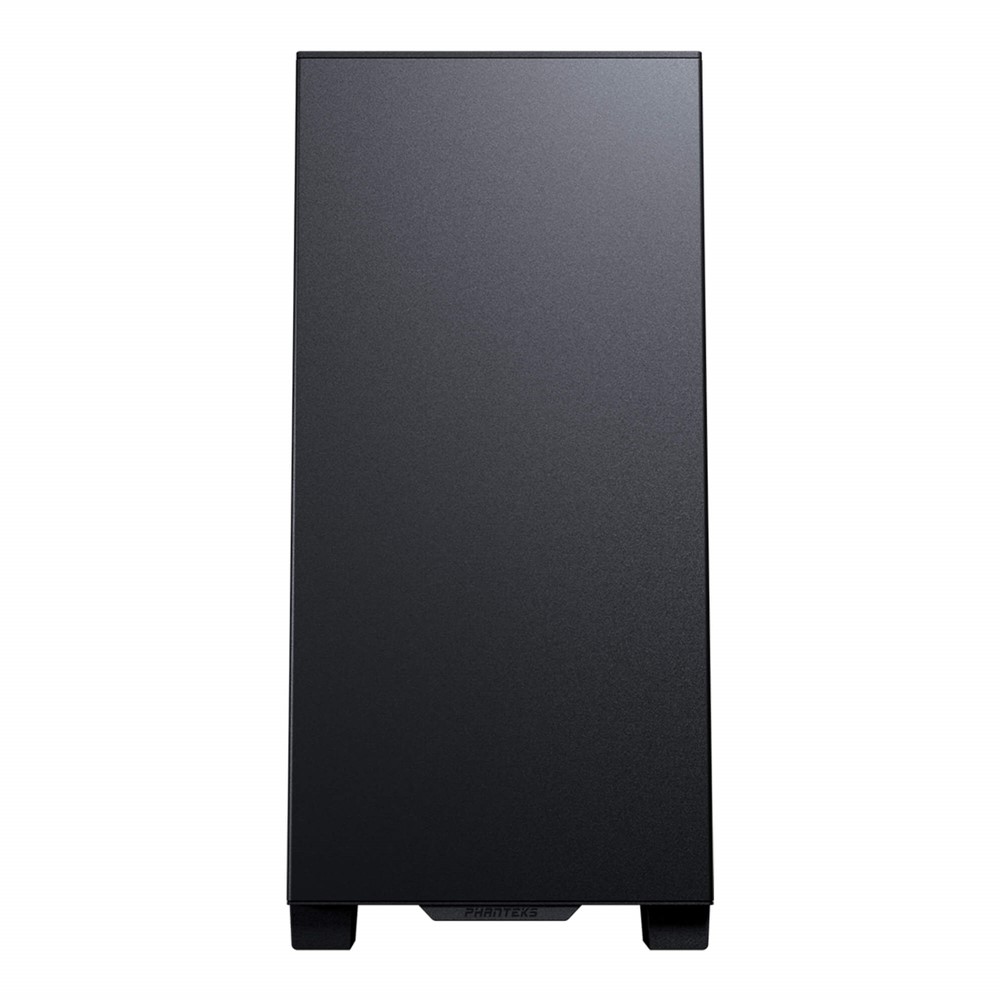

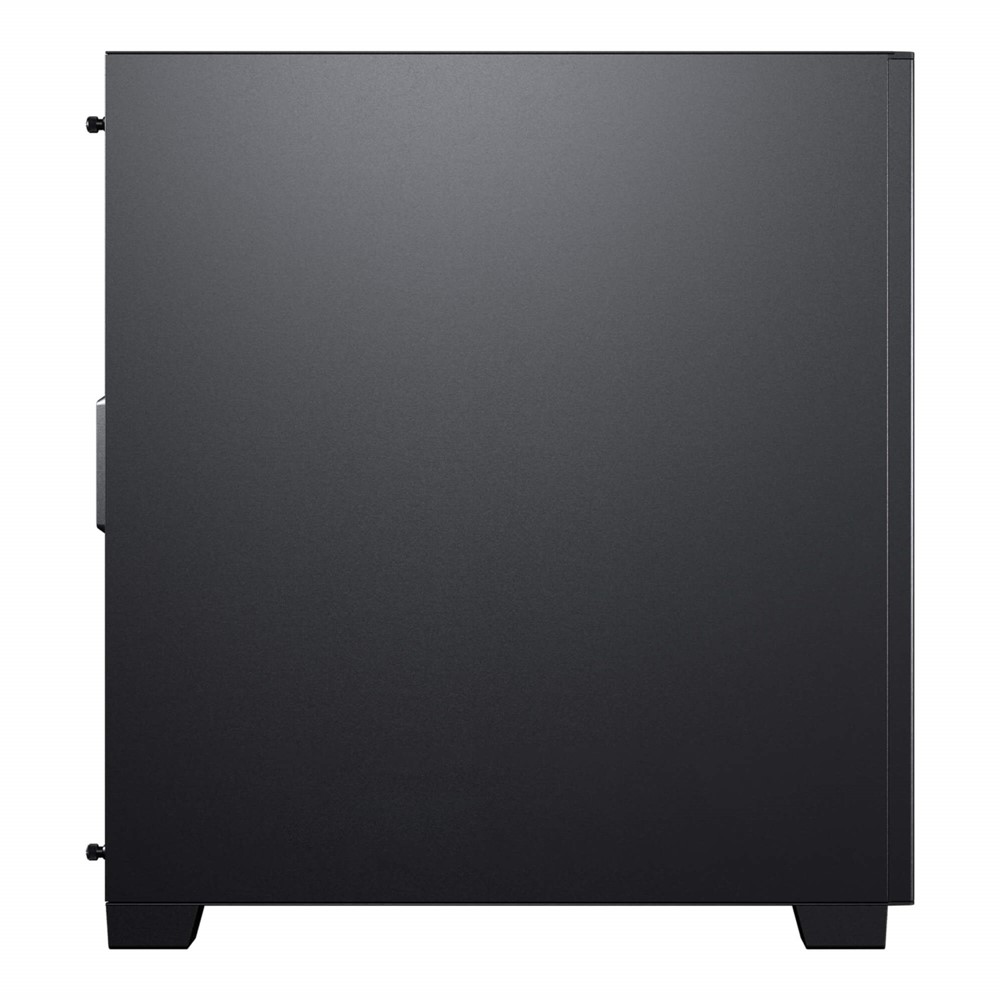

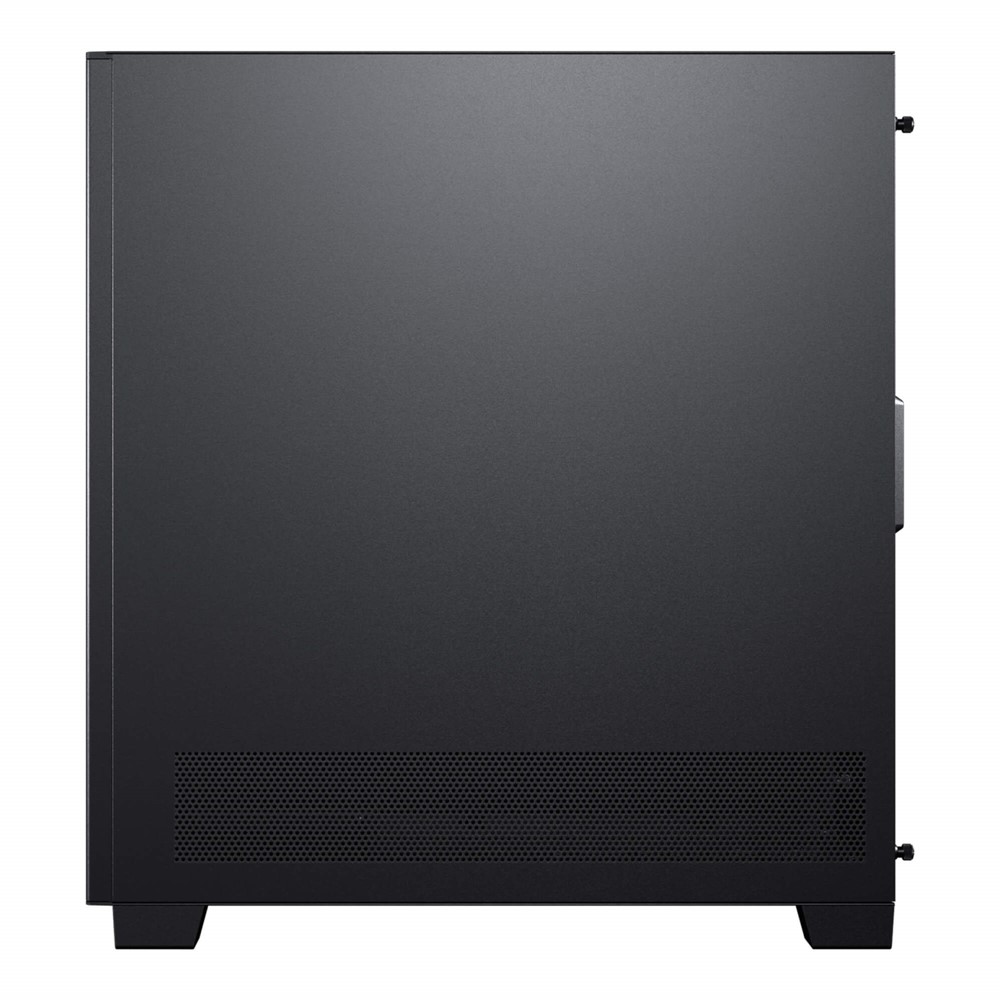

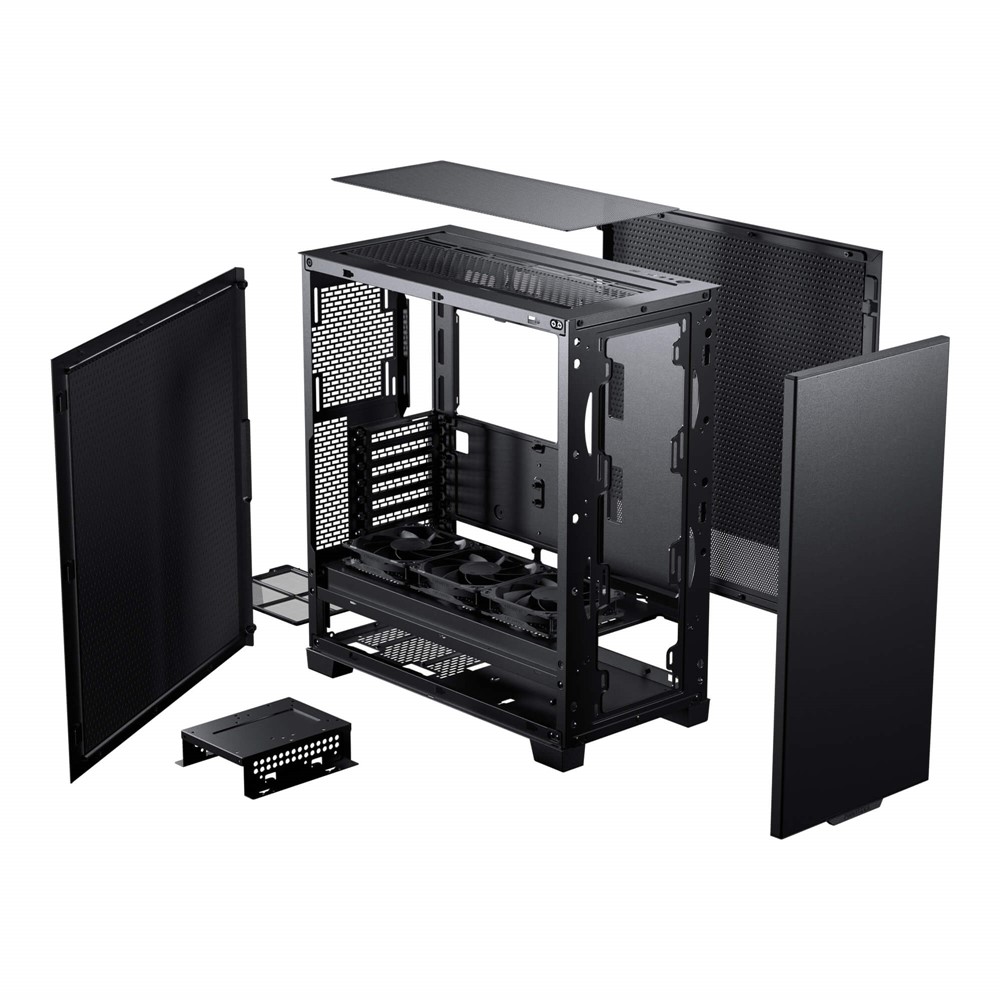

- Solid sound dampening foam on panels: Front, Left and Right panels.
|
Case Specifications
|
|
|
|
|
Dimension
|
450 x 230 x 500 mm /17.7x9.05x19.68 in (DxWxH)
|
|
Form Factor
|
Mid-tower
|
|
Material(s)
|
Steel Chassis, ABS plastic
|
|
Motherboard Support
|
ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide), Rear-Side Motherboard Support
|
|
Front I/O
|
1x USB 3.0, 1x USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, Reset Button,
|
|
Connectors
|
Front IO, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E
|
|
Window
|
No, Closed Panels
|
|
|
|
Expansion & Drive Bays
|
|
|
|
Expansion slots
|
7
|
|
Vertical GPU support
|
Yes, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01
|
|
Internal 3.5”
|
2 (2x included
|
|
Internal 2.5"
|
5 (5x included)
|
|
D-RGB Controller output
|
NA
|
|
|
|
Cooling
|
120mm fan
|
140mm fan
|
|
|
|
Front
|
-
|
-
|
|
Top
|
3x
|
2x
|
|
Rear
|
1x
|
1x
|
|
Midplate
|
3x
|
-
|
|
|
|
Liquid Cooling
|
120mm radiator
|
140mm radiator
|
|
|
|
Front
|
-
|
-
|
|
Top
|
Up to 360
|
-
|
|
Rear
|
Up to 120
|
-
|
|
Midplate
|
-
|
-
|
|
|
|
Clearance
|
|
|
|
|
Graphic card length
|
415mm
|
|
Graphic card width
|
184mm
|
|
CPU cooler height
|
184mm
|
|
PSU length
|
270mm
|
|
Top 360 Radiator
|
415 x 138 x 60mm
|
|
Rear 120 Radiator
|
132x170 mm
|
|
|
|
|
|
|
Packaging & Shipping
|
PH-XT523PSC_xx
|
|
|
|
Package Dimension (LxWxH)
|
550x300x530mm / 21.7x11.8x20.9in
|
|
Net Weight
|
7.60kg / 16.75 lbs
|
|
|
Gross Weight
|
9.23kg / 20.34 lbs
|
|
