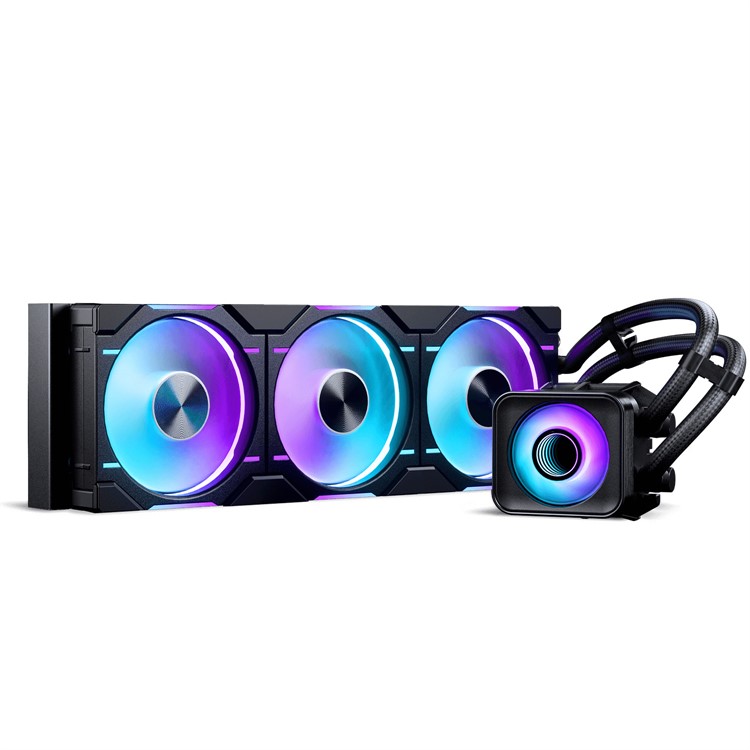

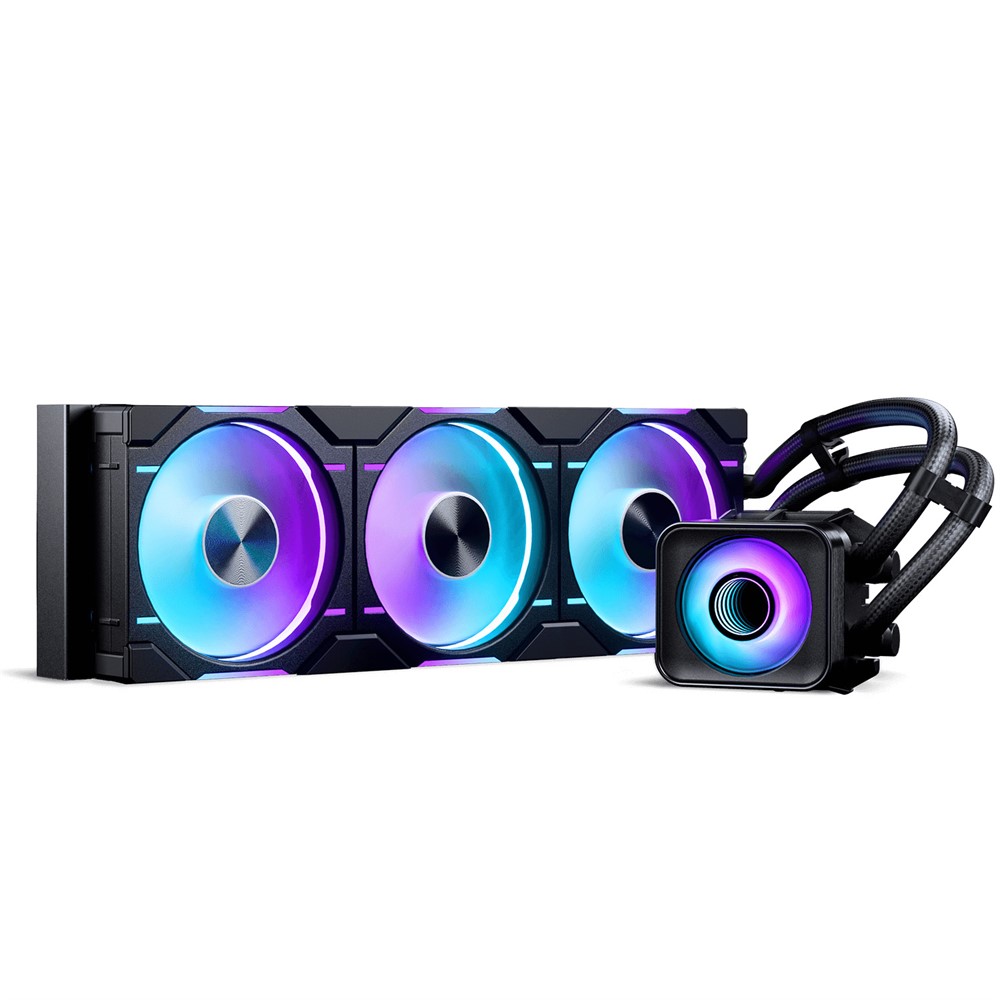

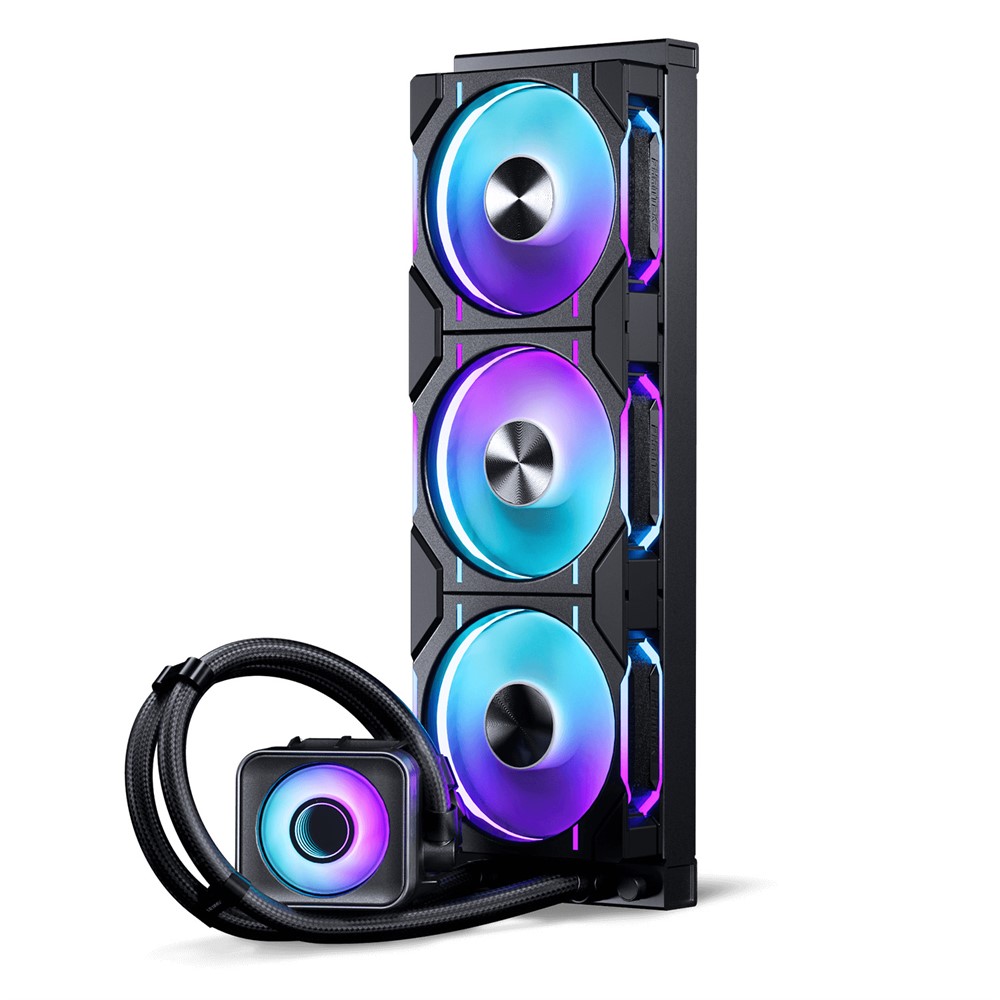

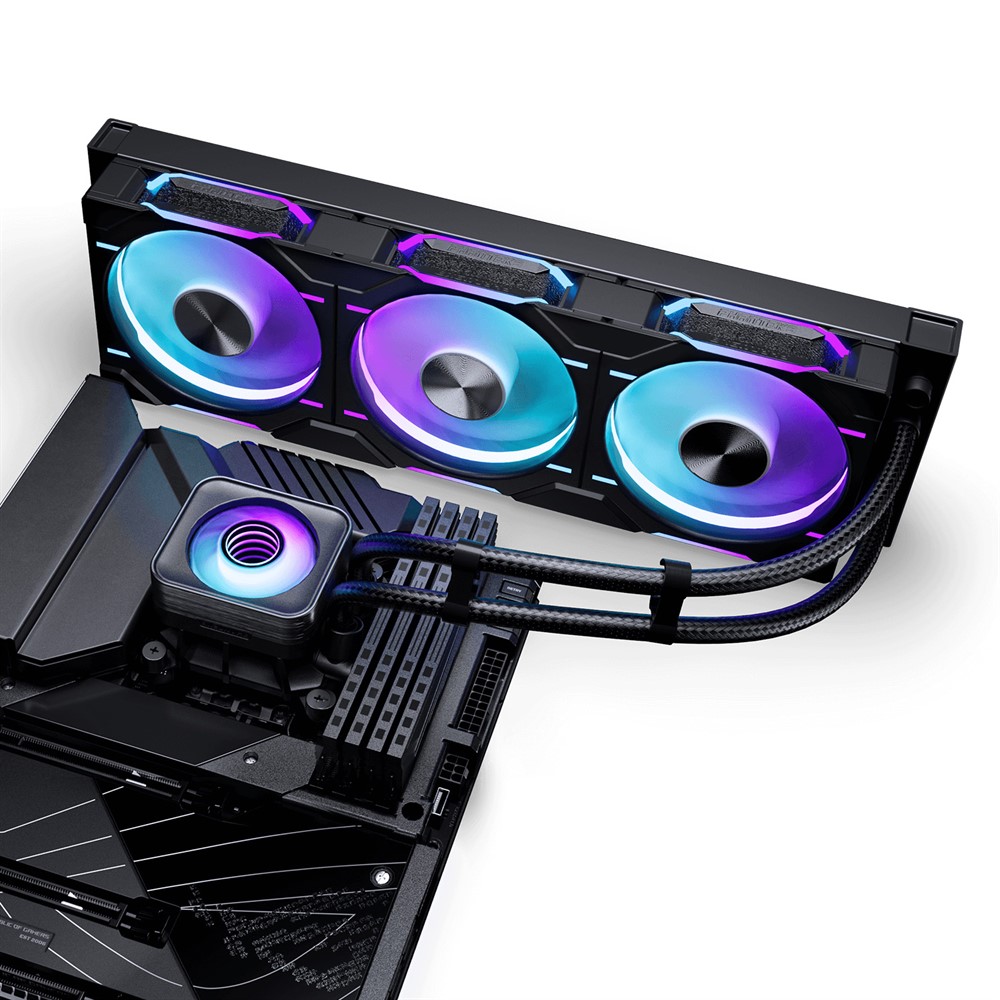

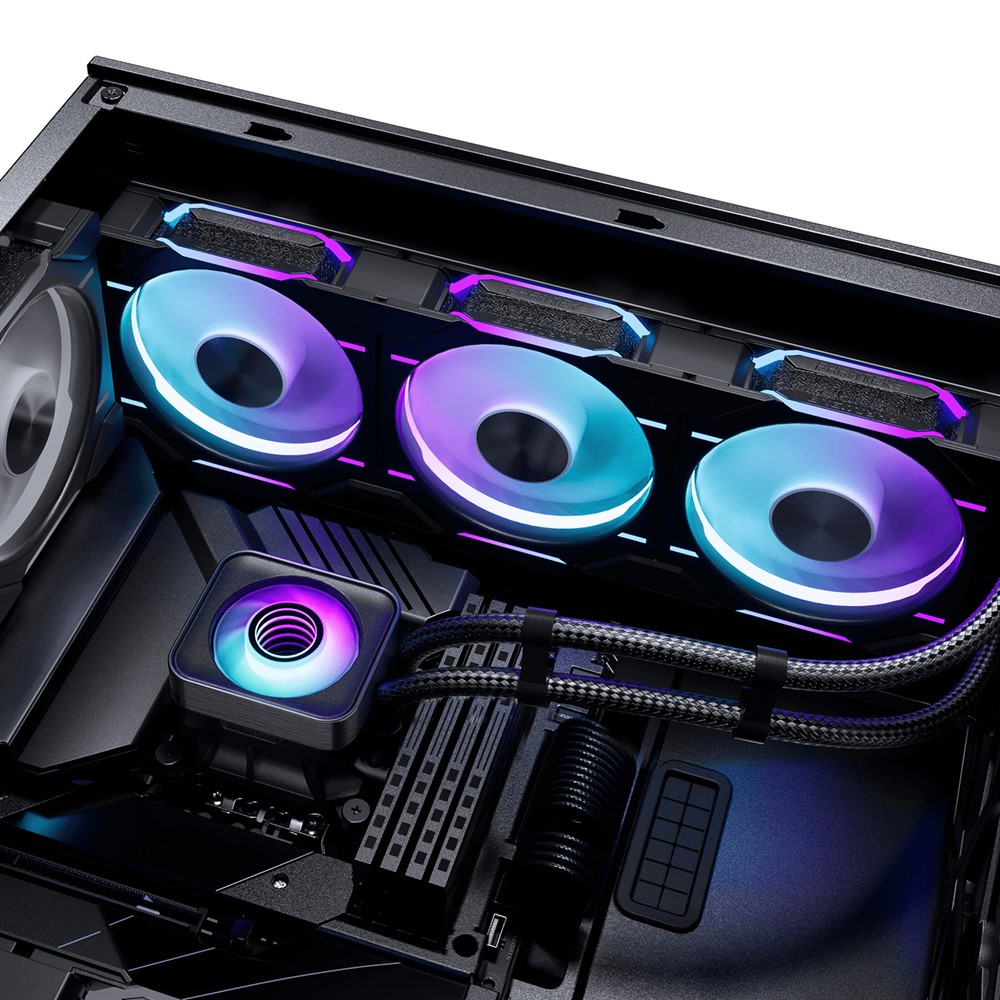

The Glacier One 360D30 X2 AIO Liquid CPU Cooler is a high-performance CPU cooling solution. Equipped with D30 fans that interconnect into a single 360 frame, simplifying cable management, while D-RGB lighting and fan control are streamlined through one cable. The large copper base and fin array efficiently cool high-end CPUs, even under heavy loads.
With a design that maximizes clearance for motherboard and RAM components, it also features an aluminum cap cover with an integrated fan for extra cooling to surrounding VRMs and M.2 SSD. This makes it perfect for users seeking optimal cooling and a clean, sleek setup.
- High-performance cooling solution designed for gamers and PC enthusiasts.

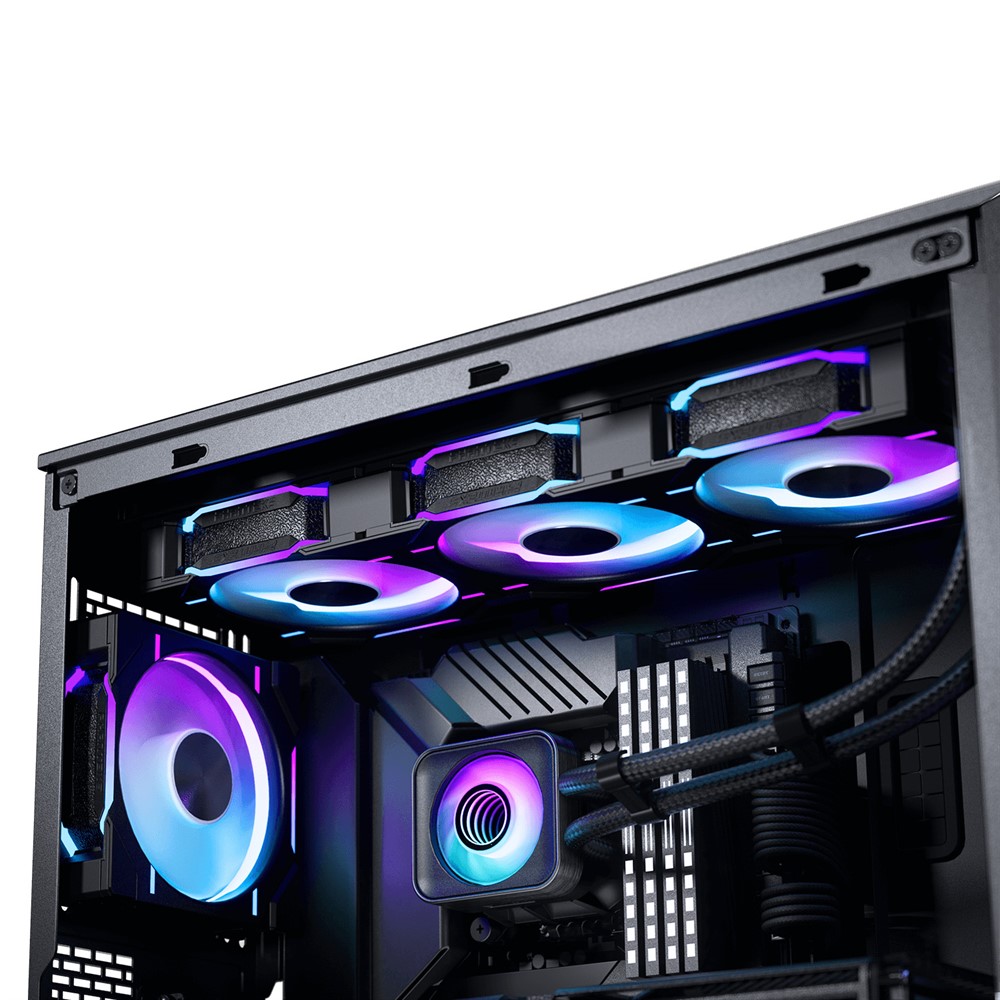

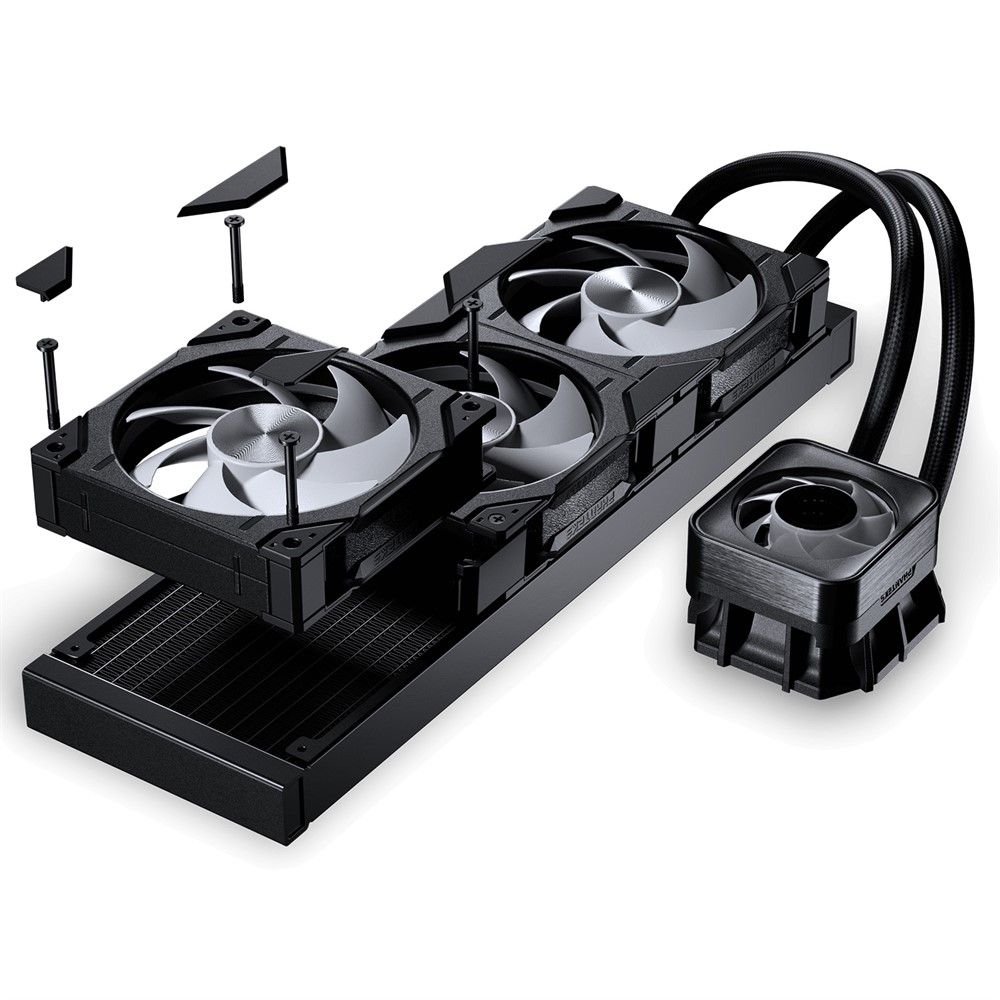

- Equipped with D30 fans that can interconnect into a single frame for easier cable management.
- A large copper base and fin array ensures efficient cooling for high-end CPUs.
- Maximum clearance design for compatibility with motherboard and RAM components.

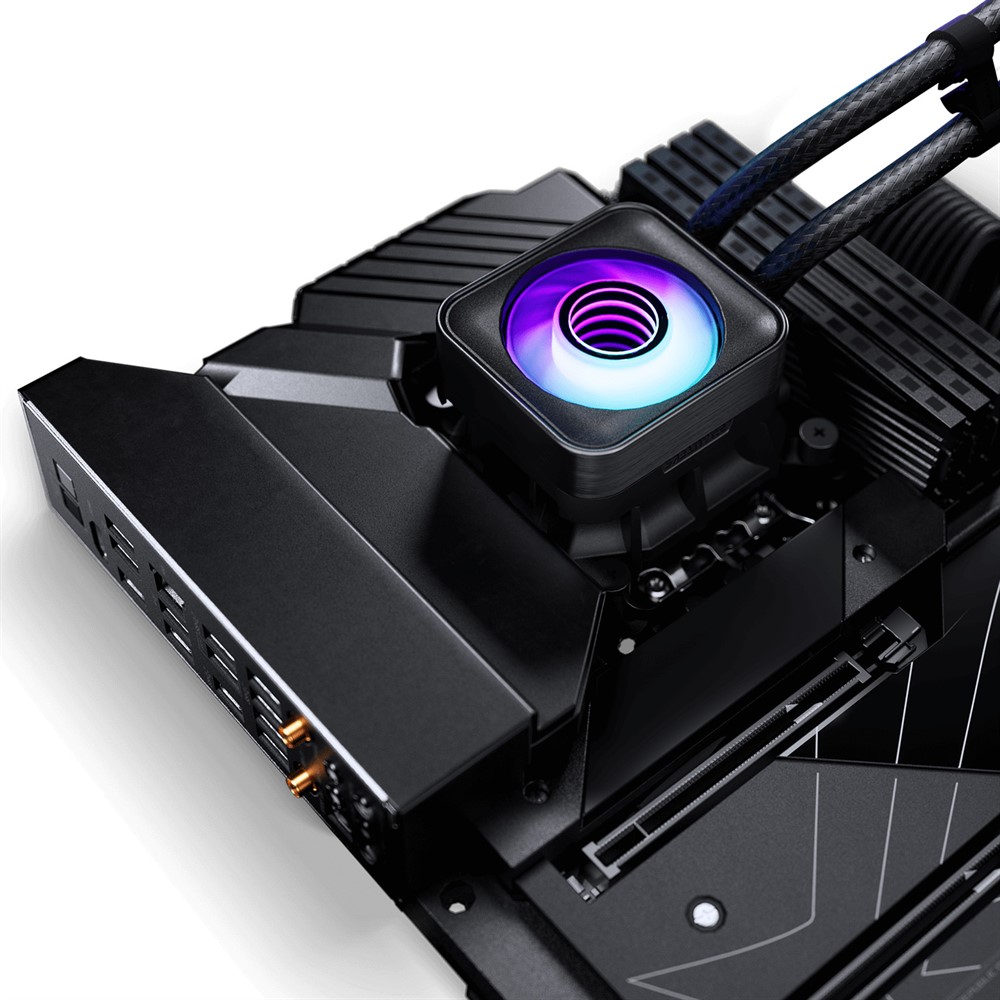

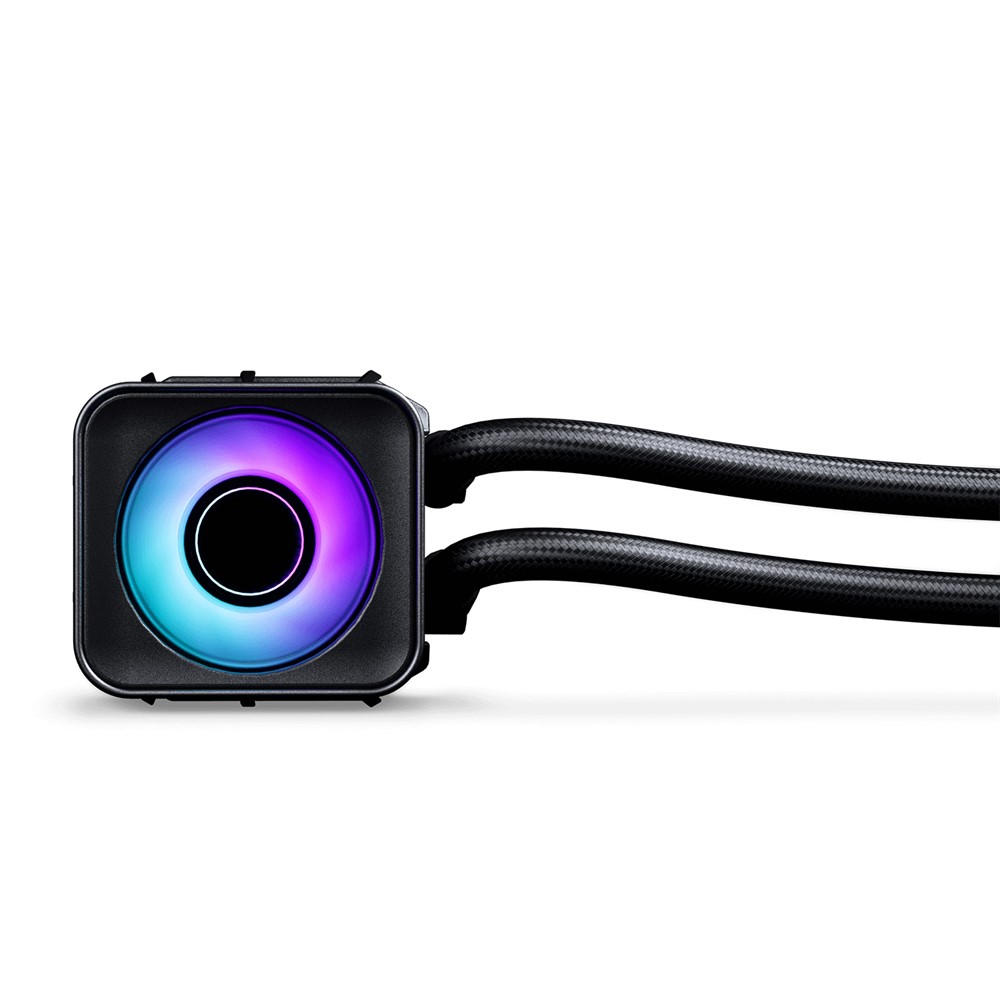

- Evolv X2-design aluminum pump cover with integrated fan cools surrounding VRMs and M.2 SSD.
- Supports Intel LGA 1700, 1200, 115x, and AMD AM4, AM5 sockets.
|
Model no.
|
PH-GO360D30_DBK02
|
|
UPC Code
|
886523003915
|
|
Product Type
|
AIO Liquid CPU Cooler
|
|
Product Color
|
Black
|
|
Socket Compatibility
|
Intel Socket LGA 115x, 1200, 1700, 1851
AMD Socket AM4, AM5
|
|
|
|
|
Dimensions:
|
|
|
Pump Block (LxWxH)
|
85.5 x 80.9 x 65.9 mm
|
|
Radiator (LxWxH)
|
397 x 120 x 27mm
|
|
Fin Damage QC
|
Max 10 fin total/Max 4 consecutive fins allowed
|
|
Tubing Length
|
400mm ± 10mm
|
|
Tubing outside diameter
|
12.5 mm OD
|
|
Pump DC 3-pin Cable
|
400mm ± 10mm
|
|
D-RGB PWM Pump Fan 6-pin Cable
|
470mm + 105mm ± 10MM, Daisy-Chain Linq6 Connector
|
|
|
|
|
Materials:
|
|
|
Cold Plate
|
Copper 1100
|
|
Radiator
|
Aluminum (AL3003)
|
|
Tubing
|

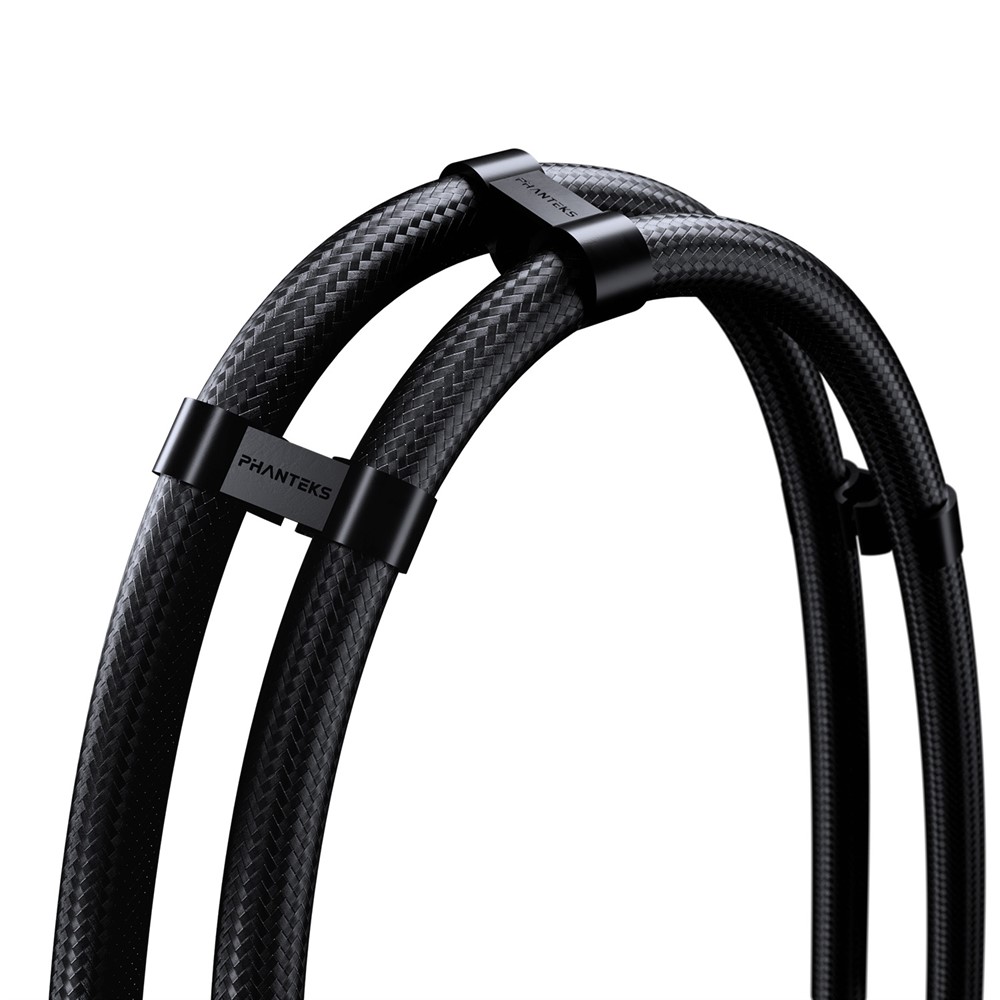

CIIR rubber with black braided sleeves
|
|
Housing
|
ABS plastic
|
|
Cooling Liquid
|
Deionized Water and Propylene Glycol mix
|
|
|
|
|
D-RGB PWM Pump Fan
|
Type: 6-Pin Linq6 Daisy-chain Connector
Fan Speed: 1000 - 3000 ± 10% RPM
PWM Fan Power: 12V, 0.06 A
D-RGB LED Quantity: 8 pcs
D-RGB LED Power: 5V, 0.35A, 1.75W
Air Flow: 9.8 CFM
Fan Static Pressure: 1.2 mm- H₂O
|
|
Pump
|
Pump Speed: 3100 ± 10% RPM with 100% duty cycle
Power: 12V, 0.28A (0.45A max), 3.36W (3.96W max)
Bearing: Ceramic bearing
Noise: 20 dBA
MTTF: 100,000 hours, 40℃ in typical use
|
|
Fittings
|
Rotary type
|
|
Thermal Paste
|
5.2 W/m-k Pre-applied + Phanteks PH-NDC
|
|
D30-120 Fan
|
Fan type: PH-F120D30_DRGB_PWM_BK01
Dimension: 120 x 120 x 30mm
Speed: 250 - 2000 ± 10% RPM
Air Flow: 64.3 CFM
Fan Static Pressure: 3.01 mm- H₂O
Noise: 30.2 dBA
Connector: 4-pin PWM
Fan Cable length: 700mm
D-RGB Connector: 3-Pin D-RGB Daisy-Chain
D-RGB Cable Length: 600+100 mm
LED Number: 30 pcs
LED Rated Voltage: DC 5V (+5V/D/GND)
LED Rated Current: Max:0.45A
|
|
|
|
|
Packaging:
|
PH-GO360D30_Dxx02
|
|
Package Dimensions (WxHxD)
|
440 x 213 x 146 mm
|
|
Package Weight (Gross Weight)
|
2.82 kg
|
|
Item Weight (Net Weight)
|
1.87 kg
|
|
Carton Dimension (WxHxD)
|
665 x 460 x 320 mm
|
|
Carton Weight
|
18.22 kg
|
|
Carton Information
|
6 pcs / carton
|
|
Scope of Delivery
|
1x PH-GO360D30_DBK02 AIO Cooler (pre-applied thermal paste)
1x Mounting kit
3x PH-F120D30 Fan
2x Right corner Screw Cover
2x Left corner Screw Cover
4x Middle Screw Cover
1x Corner Clip Connector
3x Corner Clip
2x Bridge Clip Connector
2x Bridge Clip
1x Linq6 MB Adapter Cable 500mm
3x Tube Clip
1x Installation Guide
Screw Bag:
12x 36 mm 6-32 UNC Radiator Screws
12x 6 mm 6-32 UNC Radiator Screws
|
|
Mounting Hardware
|
1x LGA 115X/1200/1700/1851 Bracket
1x LGA 115X/1200/1700/1851 Plastic Backplate
4x LGA 1700/1851 Stand-Off screws
4x LGA 115X/1200 Stand-Off screws
4x Thumb Nuts
1x AM4/AM5 Bracket
4x AM4/AM5 Stand-Off screws
|
