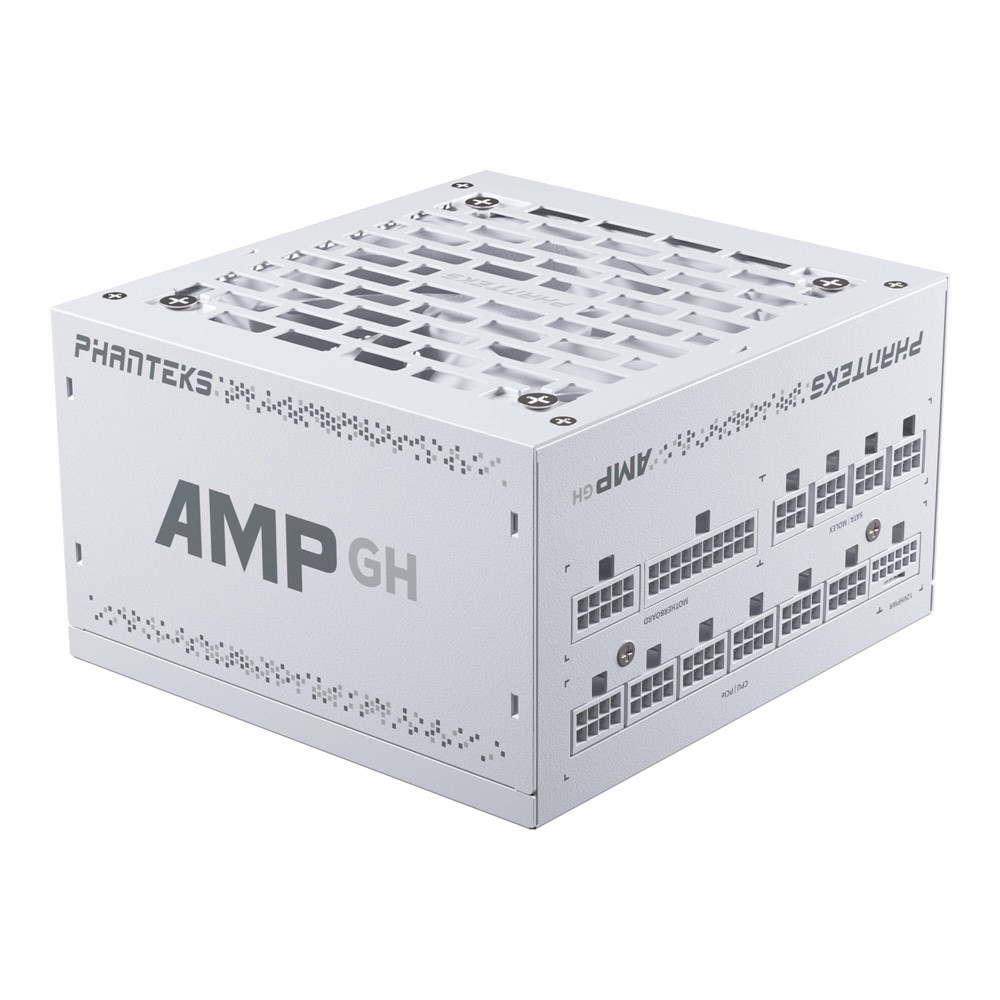

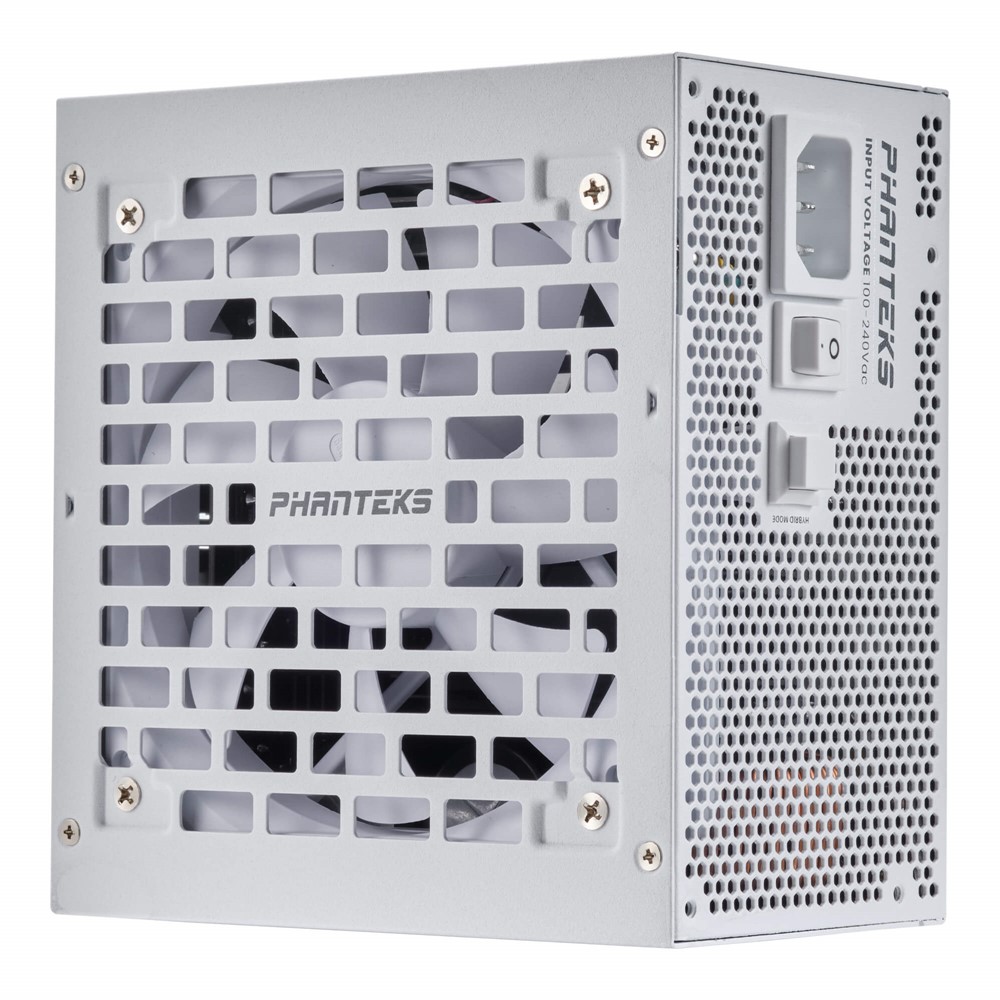

Phanteks AMP GH Series, these 80PLUS Gold-rated power supplies offer a dependable and efficient wattage output. Their fully modular design, complemented by individually braided cables and included cable combs, ensures seamless installation and reduced clutter. With a 12+4 12VHPWR connector cable delivering 600W through a single cable and meeting ATX 3.1 specifications, they can handle power peaks up to 200% of their rated output. Additionally, the Hybrid Fan button guarantees absolute silence under low loads.
Specifications:
|
|
Model
|
PH-P750GH_WT01
|
|
|
Brand
|
Phanteks
|
|
|
Type
|
Power Supply DC output 750W 80+ Gold
|
|
|
Platform
|
Intel ATX 3.1 / PCIe Gen5.1
|
|
|
Color
|
White
|
|
|

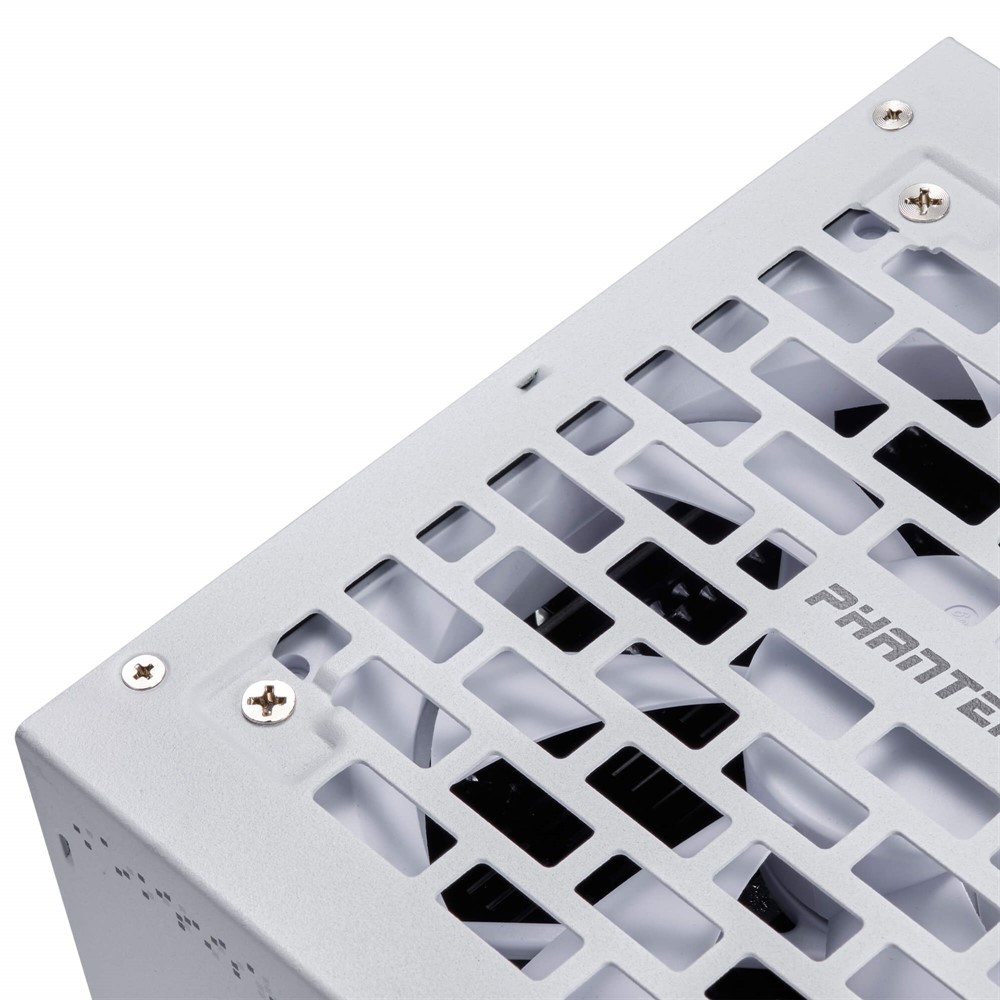

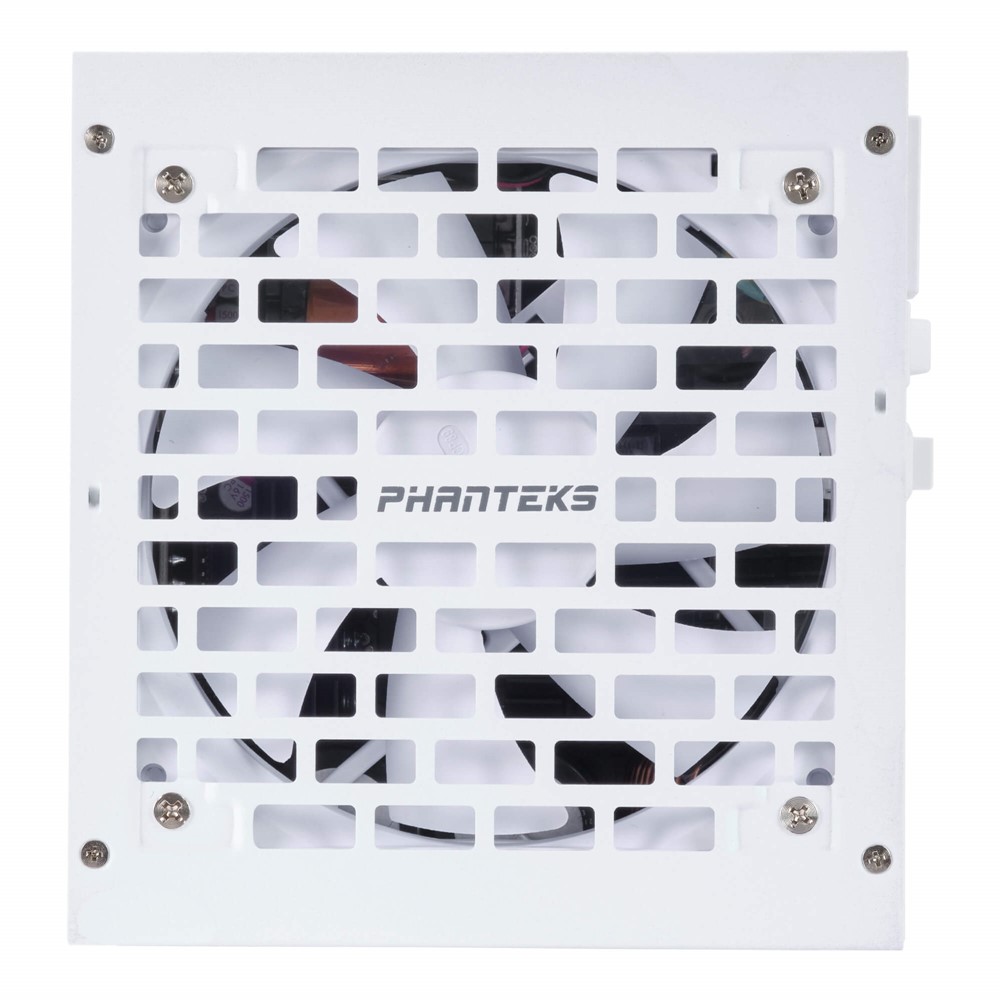

Cooling Fan
|
120mm Hydraulic Bearing Fan
|
|
|
Output Protection
|
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection
|
|
|
Back Plate

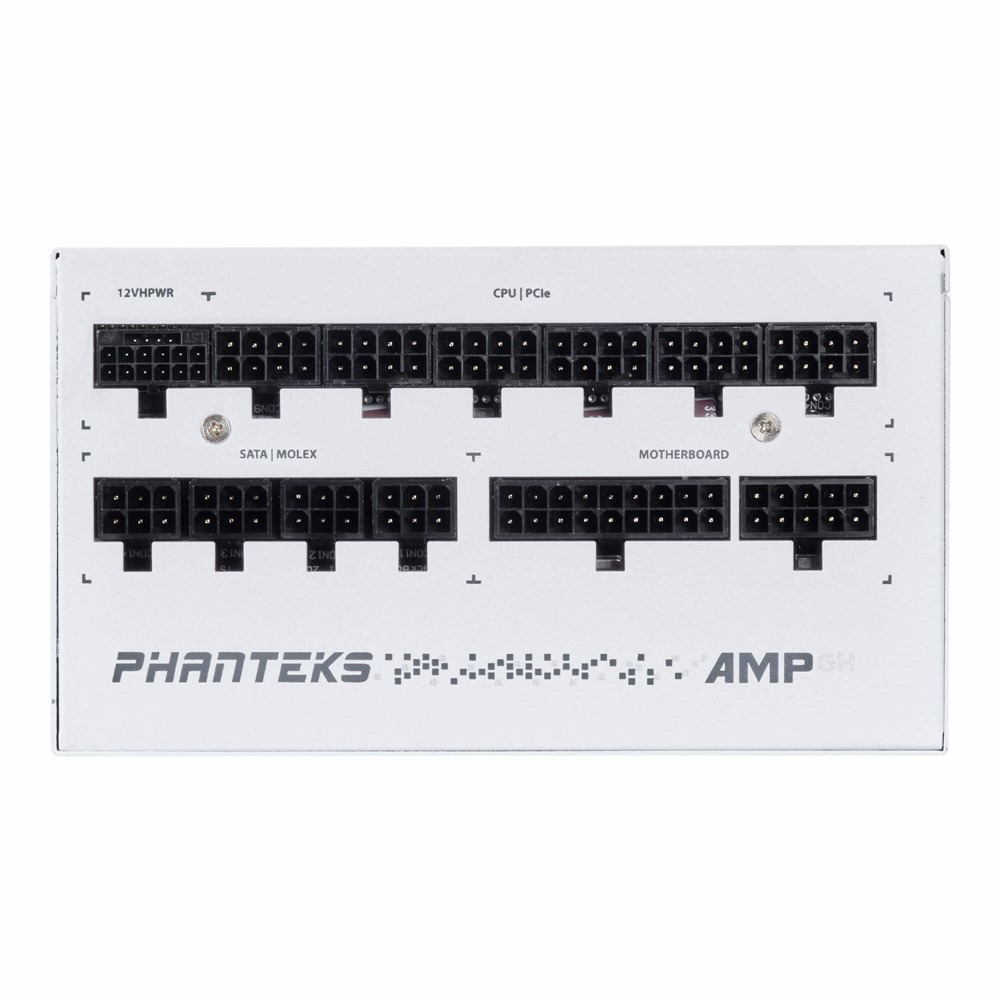

PSU Output Connector
|
Fully Modular:
1x 18+10pin => Motherboard
5x 8pin => CPU / PCIe
3x 6pin => SATA / Molex
1x 12V-2x6 => PCIe
|
|
|
Output Voltage
|
12V
|
5V
|
3.3V
|
-12V
|
5VSB
|
|
|
Maximum Current
|
62A
|
20A
|
20A
|
0.3A
|
2.5A
|
|
|
Max Capacity
|
744W
|
100W
|
3.6W
|
12.5W
|
|
|
DC Output
|
750W
|
|
|

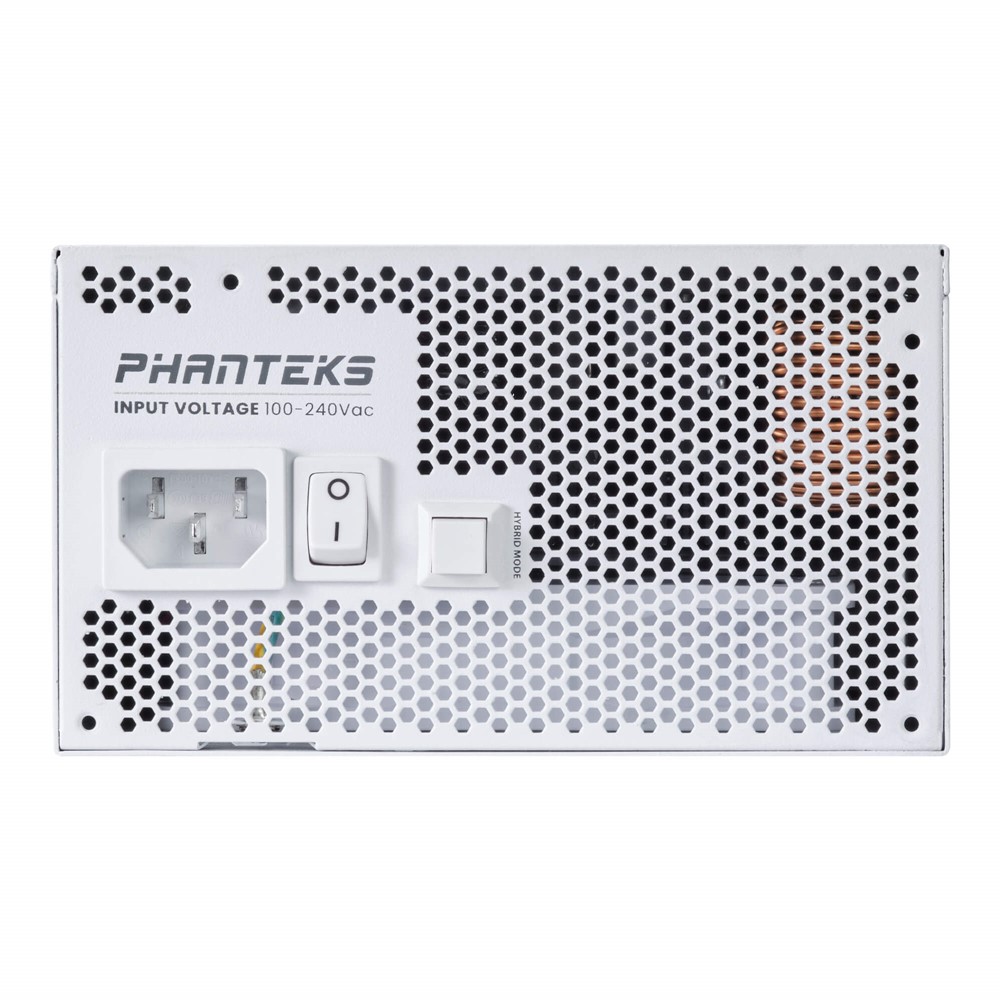

AC Input
|
100-240Vac/10A, 50-60Hz
|
|
|
16-Pin PCI-e Gen5 Capacity
|
450W
|
|
|
Operating Temp.
|
0 to 40℃
|
|
|
Operating Humidity
|
To 85% relative humidity (non-condensing)
|
|
|
Storage Temperature
|
-20 to 90℃
|
|
|
Storage Humidity
|
To 95% relative humidity (non-condensing)
|
|
|
MTBF
|
>100,000 hrs
|
|
|
PSU Dimension (LxWxH)
|
140 mm x 150 mm x 86 mm (5.5 in x 5.9 in x 3.4 in)
|
|
|
Packing Dimension (LxWxH)
|
310 mm x 220 mm x 120 mm (12.20 in x 8.66 in x 4.72 in)
|
|
|
Q’ty information
|
5 pcs/carton, 35 cartons/pallet, 175 pcs/pallet
|
|
|
Net Weight
|
1.40 kg (3.08 lbs)
|
|
|

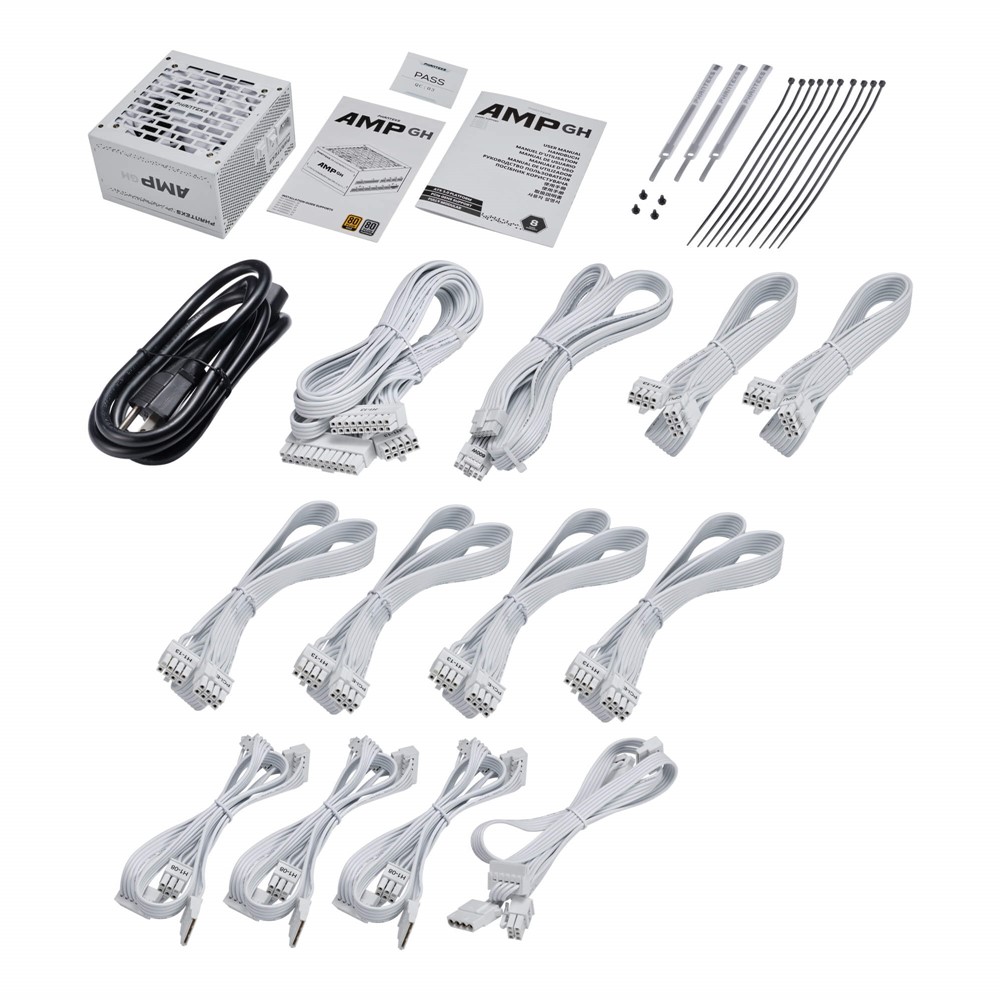

Scope of Delivery
|
1x PH-P750GH_WT01 Power Supply
1x C13 Power cord (1500mm)
Textured Cable:
1x 18Pin+10Pin MB 24P (610mm)
2x 8pin CPU 4+4P (650mm)
3x 8pin PCI-E 6+2P (750mm)
1x 12V-2x6 (720mm)
2x 6pin 4SATA 90° (450mm-150/150/150mm)
1x 6pin 2SATA/2Molex 90° (450mm-150/150/150mm)
Accessory:
1x User’s manual
1x Installation guide
1x PSU Bag
1x Cable Bag
1x Zip tie bag
1x Screw Pack
1x Velcro Pack
|
